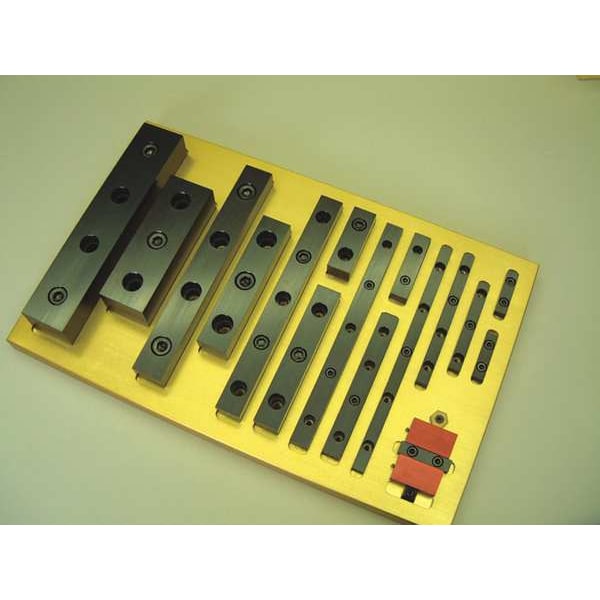

Locating Rail, 1-31/64H.x6W.x1-63/64D. in
| Item | Locating Rail |
|---|---|
| Thread Size | 1/2"-13 |
| Thread Length | 1-3/4 in |
| Overall Depth | 1-63/64 in |
| Overall Width | 6 in |
| Overall Height | 1.48 in |
| Material | Steel |
| For Use With | Workholding |
| Drive Size | 1/2 in |
| Includes | Mounting Screws |
| Clamp Type | Locating Rail |
| Overall Length | 6 in |
| Slot Size | 1.98 in |
| Application | Workholding |
| Finish - Machining | Carbide |
| Features | Easily Machined, Makes Fixture Building Easier and Quicker |
| Finish | Carbide |
| Machinable Width - Maximum | Not Applicable |
| Workpiece Tapping Distance | 1 in |
| Bolt Thread Length | 1-3/4 in |
| T-Slot Width | Not Applicable |
| Clamp Face Type | Not Applicable |
| Clamp Movement - Maximum | Not Applicable |
| Clamping Face Material | Steel |
| Step Depth | Not Applicable |
| Head Width | 1.98 in |
| Head Height | 1.48 in |
| Clamp Body Material | Steel |
| Head Length | 6 in |
| Series | Not Applicable |
| Bolt Thread Size | 1/2"-13 |
| Clamping Force - Maximum | Not Applicable |
| Measurement System | Inch |
| Step Height | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Package Quantity | 1 |
