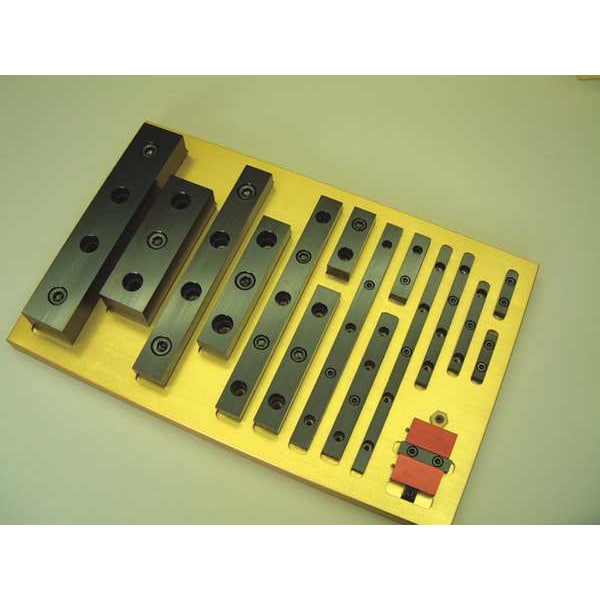

Locating Rail, 12mm x 100mm x 15mm
| Item | Locating Rail |
|---|---|
| Clamp Style | Locating Rail |
| Thread Size | M6 |
| Thread Length | 16 mm |
| Overall Depth | 15 mm |
| Material | Steel |
| Overall Width | 15 mm |
| Overall Height | 12 mm |
| For Use With | Workholding |
| Drive Size | 6 mm |
| Includes | Mounting Screws |
| Application | Workholding |
| Clamp Type | Locating Rail |
| Finish - Machining | Carbide |
| Slot Size | 15 mm |
| Features | Easily Machined, Makes Fixture Building Easier and Quicker |
| Overall Length | 100 mm |
| Finish | Carbide |
| Clamp Movement - Maximum | Not Applicable |
| T-Slot Width | Not Applicable |
| Measurement System | Metric |
| Clamp Face Type | Not Applicable |
| Head Width | 15 mm |
| Workpiece Tapping Distance | 20 mm |
| Machinable Width - Maximum | Not Applicable |
| Step Height | Not Applicable |
| Clamping Force - Maximum | Not Applicable |
| Clamping Face Material | Steel |
| Clamp Body Material | Steel |
| Step Depth | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Bolt Thread Length | 16 mm |
| Series | Not Applicable |
| Head Height | 12 mm |
| Bolt Thread Size | M6 |
| Head Length | 100 mm |
| Package Quantity | 1 |
