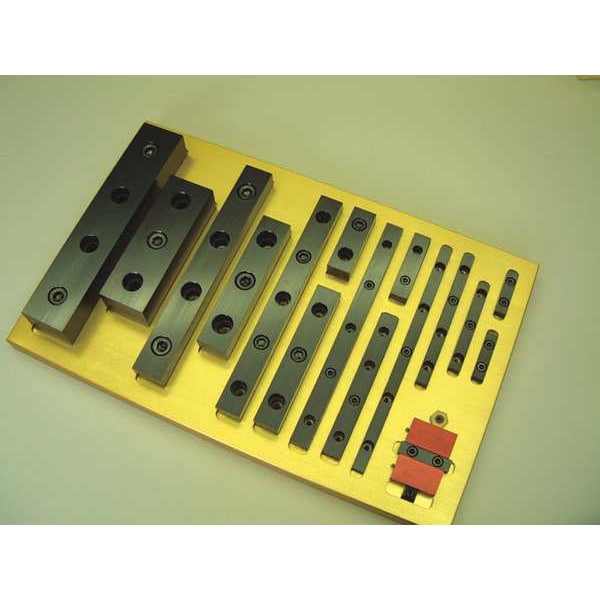

Locating Rail, 18mm x 250mm x 24mm
| Item | Locating Rail |
|---|---|
| Clamp Style | Locating Rail |
| Thread Size | M10 |
| Thread Length | 25 mm |
| Overall Width | 24 mm |
| Overall Depth | 24 mm |
| Overall Height | 18 mm |
| Material | Steel |
| For Use With | Workholding |
| Drive Size | 10 mm |
| Includes | Mounting Screws |
| Finish - Machining | Carbide |
| Clamp Type | Locating Rail |
| Slot Size | 24 mm |
| Features | Easily Machined, Makes Fixture Building Easier and Quicker |
| Overall Length | 250 mm |
| Application | Workholding |
| Finish | Carbide |
| Clamp Body Material | Steel |
| Workpiece Tapping Distance | 25 mm |
| Clamping Force - Maximum | Not Applicable |
| T-Slot Width | Not Applicable |
| Head Length | 250 mm |
| Bolt Thread Length | 25 mm |
| Clamp Movement - Maximum | Not Applicable |
| Measurement System | Metric |
| Head Height | 18 mm |
| Series | Not Applicable |
| Bolt Thread Size | M10 |
| Step Height | Not Applicable |
| Clamp Face Type | Not Applicable |
| Clamping Face Material | Steel |
| Machinable Width - Maximum | Not Applicable |
| Head Width | 24 mm |
| Step Depth | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Package Quantity | 1 |
