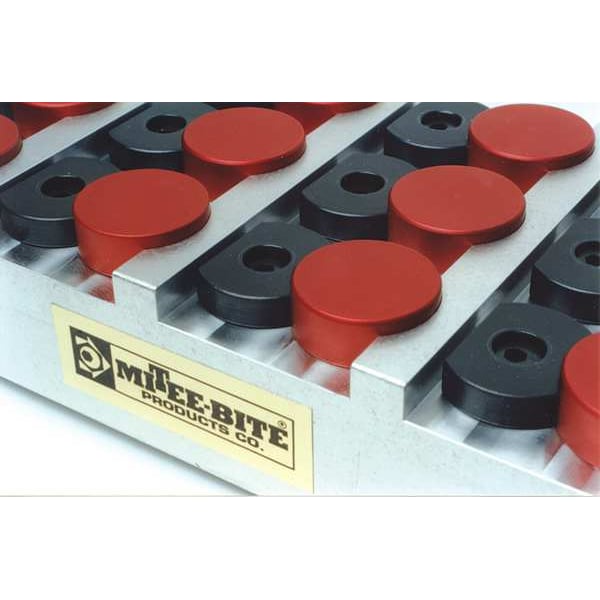

Mach. Fxture Clamp, Wedge, 8-32,6002lb.
| Item | Machinable Uniforce Clamp |
|---|---|
| Clamp Style | Wedge |
| Thread Size | #8-32 |
| Thread Length | 5/8 in |
| Overall Height | 1/2 in |
| Overall Depth | 5/8 in |
| For Use With | Workholding |
| Holding Force | 500 lb |
| Diameter | 11/64 in |
| Overall Width | 1-1/8 in |
| Material | Aluminum/Steel |
| Drive Size | 0.164 in |
| Includes | Mounting Screws |
| Overall Length | 0.62 in |
| Material - Machining | Steel |
| Slot Size | 1-1/8 in |
| Features | Compact Design |
| Application | Workholding |
| Clamp Type | Wedge |
| T-Slot Width | Not Applicable |
| Clamp Movement - Maximum | Not Applicable |
| Bolt Thread Length | 5/8 in |
| Clamping Face Material | Steel |
| Clamping Force - Maximum | 2,225 N |
| Head Height | 1/2 in |
| Clamp Body Slot Length | Not Applicable |
| Clamp Body Material | Steel |
| Head Width | 1-1/8 in |
| Step Height | Not Applicable |
| Step Depth | Not Applicable |
| Machinable Width - Maximum | 0.18 in |
| Bolt Thread Size | #8-32 |
| Head Length | 0.62 in |
| Series | Uniforce |
| Measurement System | Inch |
| Package Quantity | 1 |
