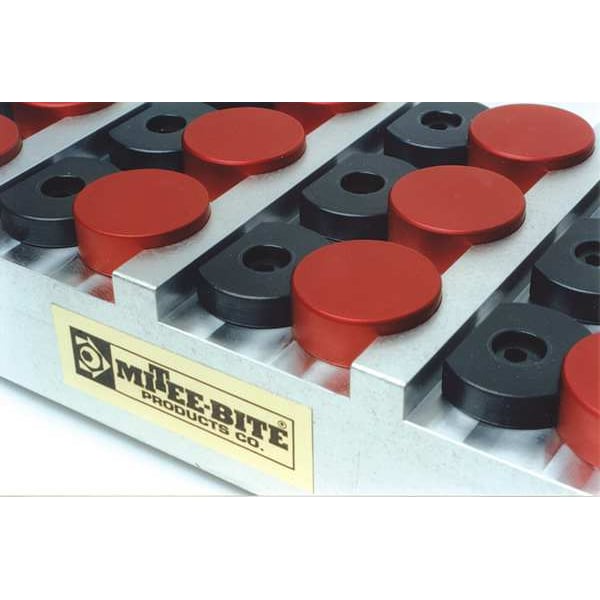

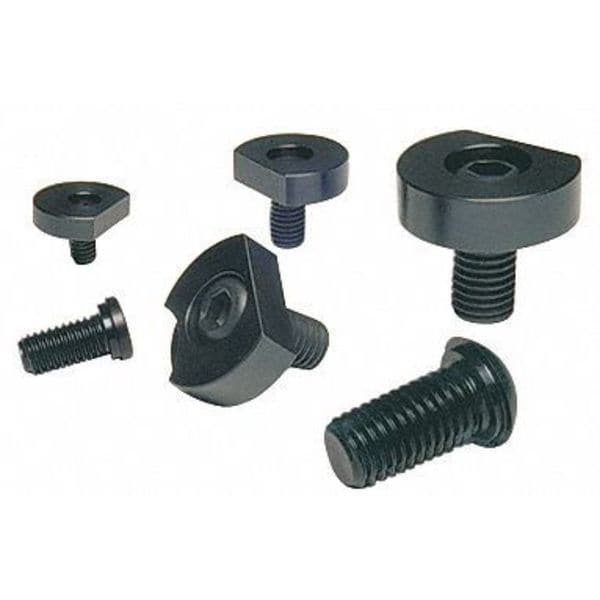

Machinable Fixture Clamps, M10, 20mm, PK4
| Item | Machinable Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M10 |
| Thread Length | 20 mm |
| For Use With | Workholding |
| Material | Steel |
| Drive Size | 7 m |
| Holding Force | 8900 N |
| Diameter | 10 mm |
| Overall Height | 26.9 mm |
| Overall Width | Not Applicable |
| Includes | Machining Screws |
| Material - Machining | Steel |
| Features | Low Profile |
| Application | Workholding |
| Clamp Type | Fixture Clamp |
| Head Length | Not Applicable |
| Clamp Movement - Maximum | 1.52 mm |
| Clamp Body Slot Length | Not Applicable |
| T-Slot Width | Not Applicable |
| Clamping Face Material | Steel |
| Step Depth | Not Applicable |
| Bolt Thread Size | M10 |
| Measurement System | Metric |
| Step Height | Not Applicable |
| Series | Not Applicable |
| Overall Length | Not Applicable |
| Head Width | 31.2 mm |
| Number of Clamps | 4 |
| Clamping Force - Maximum | 8,900 N |
| Machinable Width - Maximum | 7 mm |
| Clamp Body Material | Steel |
| Bolt Thread Length | 20 mm |
| Head Height | 8.9 mm |
| Workpiece Tapping Distance | Not Applicable |
| Clamp Face Type | Smooth |
| Package Quantity | 4 |
