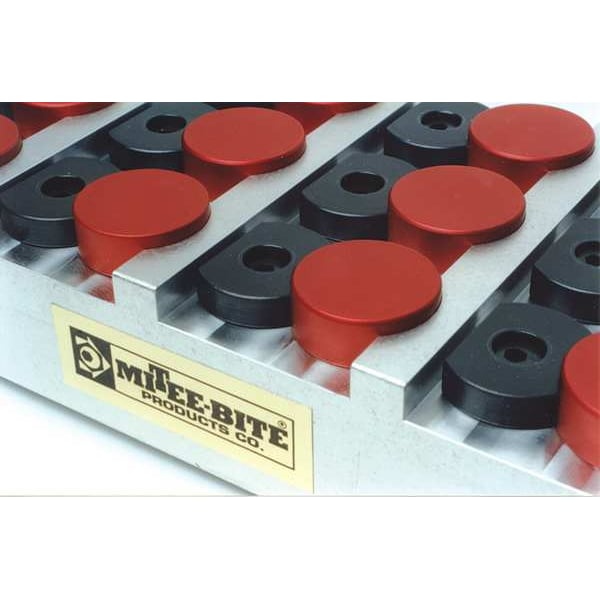

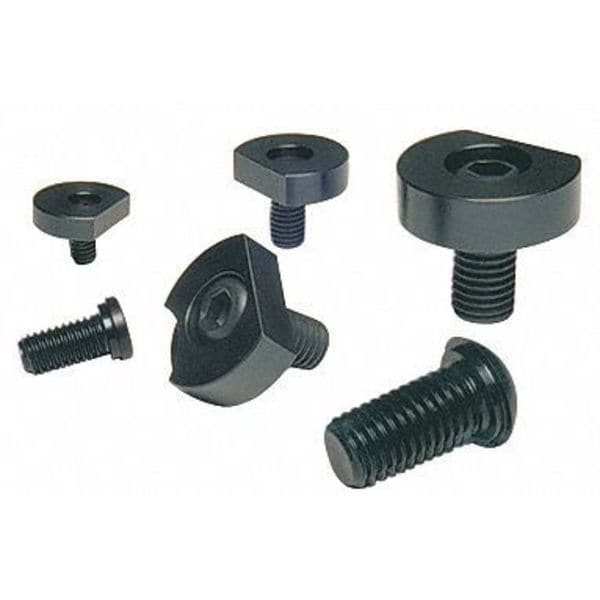

Machinable Fixture Clamps, M12, 25mm, PK4
| Item | Machinable Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M12 |
| Thread Length | 25 mm |
| For Use With | Workholding |
| Diameter | 12 mm |
| Overall Height | 34.3 mm |
| Material | Steel |
| Drive Size | 8 m |
| Overall Width | Not Applicable |
| Holding Force | 17,800 N |
| Includes | Machining Screws |
| Clamp Type | Fixture Clamp |
| Material - Machining | Steel |
| Application | Workholding |
| Features | Low Profile |
| T-Slot Width | Not Applicable |
| Step Depth | Not Applicable |
| Workpiece Tapping Distance | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Machinable Width - Maximum | 7.6 mm |
| Overall Length | Not Applicable |
| Series | Not Applicable |
| Head Height | 11.4 mm |
| Clamping Force - Maximum | 17,800 N |
| Clamp Movement - Maximum | 2.03 mm |
| Head Length | Not Applicable |
| Head Width | 37.6 mm |
| Bolt Thread Length | 25 mm |
| Number of Clamps | 4 |
| Measurement System | Metric |
| Clamping Face Material | Steel |
| Clamp Face Type | Smooth |
| Step Height | Not Applicable |
| Clamp Body Material | Steel |
| Bolt Thread Size | M12 |
| Package Quantity | 4 |
