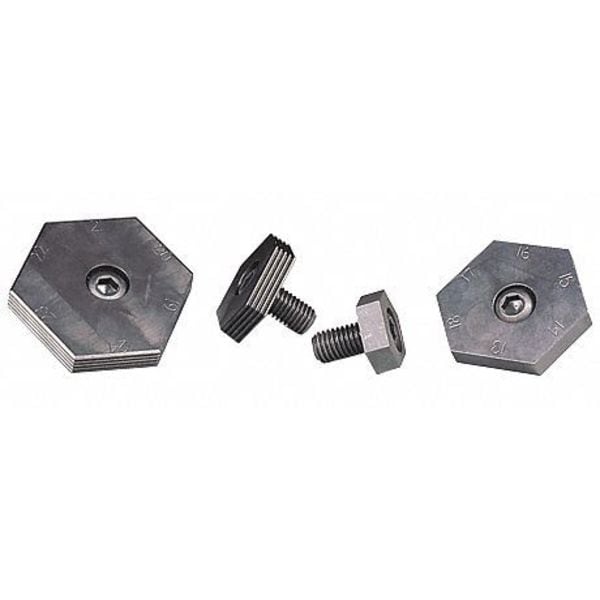

Series 9 Clamp, 19 to 24 Serrated, 1/2-13
| Item | Adjustable Fixture Clamp |
|---|---|
| Clamp Style | Cam Action/19 to 24 Serrated |
| Thread Size | 1/2"-13 |
| Thread Length | 1 in |
| For Use With | Workholding |
| Material | Steel |
| Holding Force | 4000 lb |
| Diameter | 1/2 in |
| Overall Width | Not Applicable |
| Drive Size | 1/2 in |
| Clamp Type | Adjustable |
| Features | Adjustable Low Profile |
| Material - Machining | Steel |
| Application | Workholding |
| T-Slot Width | Not Applicable |
| Measurement System | Inch |
| Clamp Body Slot Length | Not Applicable |
| Series | Series 9 |
| Clamp Face Type | Serrated |
| Clamp Body Material | Steel |
| Overall Length | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Clamping Force - Maximum | 17,790 N |
| Bolt Thread Length | 1 in |
| Clamping Face Material | Steel |
| Step Depth | Not Applicable |
| Bolt Thread Size | 1/2"-13 |
| Clamp Movement - Maximum | 0.08 in |
| Workpiece Tapping Distance | 1.2205 in |
| Step Height | Not Applicable |
| Head Height | 0.394 in |
| Package Quantity | 1 |
