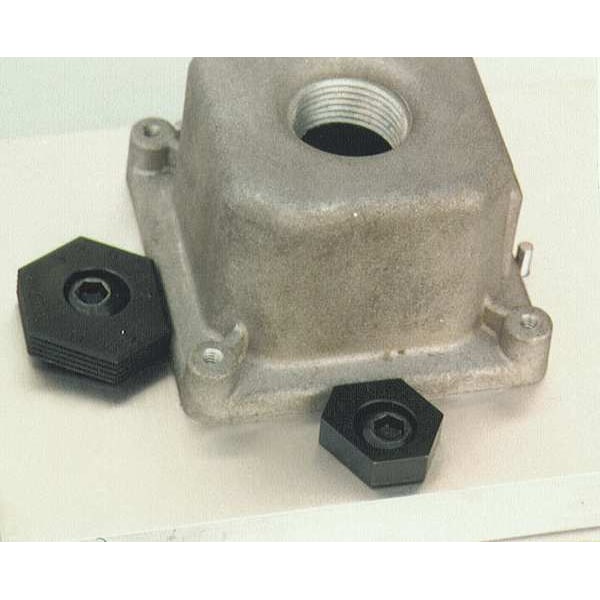

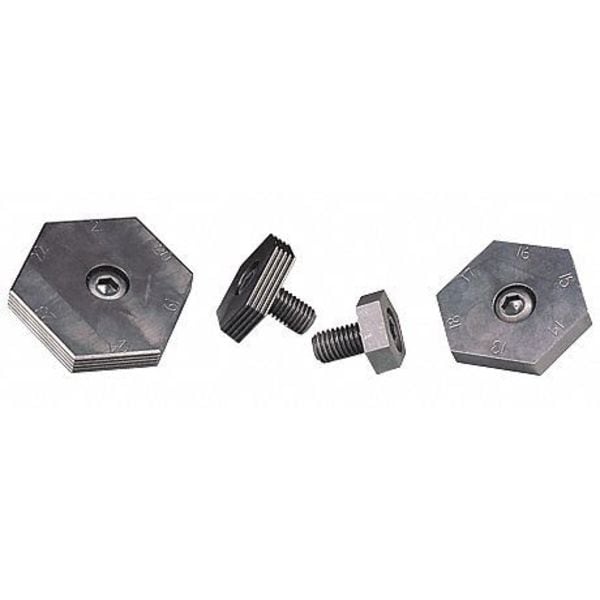

Series 9 Clamp, 19 to 24 Smooth, M12
| Item | Adjustable Fixture Clamp |
|---|---|
| Clamp Style | Cam Action/19 to 24 Smooth |
| Thread Size | M12 |
| Thread Length | 25 mm |
| Diameter | 12 mm |
| For Use With | Workholding |
| Holding Force | 17,800 N |
| Material | Steel |
| Drive Size | 12 mm |
| Overall Width | Not Applicable |
| Features | Adjustable Low Profile |
| Clamp Type | Adjustable |
| Material - Machining | Steel |
| Application | Workholding |
| Workpiece Tapping Distance | 35 mm |
| Step Depth | Not Applicable |
| Clamp Movement - Maximum | 2.03 mm |
| Clamp Body Material | Steel |
| Series | Series 9 |
| Measurement System | Metric |
| Clamp Face Type | Smooth |
| Clamp Body Slot Length | Not Applicable |
| T-Slot Width | Not Applicable |
| Bolt Thread Length | 25 mm |
| Step Height | Not Applicable |
| Clamping Force - Maximum | 17,800 N |
| Head Height | 10 mm |
| Machinable Width - Maximum | Not Applicable |
| Bolt Thread Size | M12 |
| Overall Length | Not Applicable |
| Clamping Face Material | Steel |
| Package Quantity | 1 |
