T-Slot Clamp Kit, 22mm, ST
| Item | T-Slot Fixture Clamp Kit |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M16x2 |
| Thread Length | 30 mm |
| Diameter | M16 |

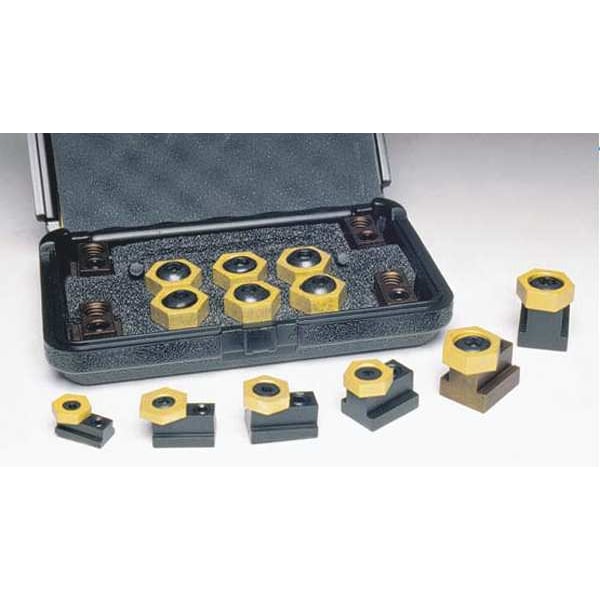

| Includes | (2) Hex Keys;(4) Mitee-Bite T-Nuts;(6) Mitee-Bite Fixture Clamps |
| Holding Force | 4,000 lb |
| Overall Depth | 44.3 mm |
| T-Slot Size | 22 mm |
| For Use With | CNC Machining Centers |
| Drive Size | 12 mm |
| Overall Height | 41.3 mm |
| Material | Steel |
| Overall Width | 34.9 mm |
| Features | Fast Set-Up Action |
| Material - Machining | Steel |
| Slot Size | 22 mm |
| Number of Pieces | 12 |
| Application | CNC Machining Centers |
| Overall Length | 44.3 mm |
| Step Depth | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Clamp Type | T-Slot |
| Series | Not Applicable |
| Clamp Movement - Maximum | 2.54 mm |
| Head Width | 30.15 mm |
| Clamping Face Material | Brass |
| T-Slot Width | 22 mm |
| Measurement System | Metric |
| Step Height | Not Applicable |
| Head Height | 12.7 mm |
| Clamping Force - Maximum | 26,680 N |
| Bolt Thread Length | 2 mm |
| Clamp Face Type | Smooth |
| Number of Clamps | 6 |
| Clamp Body Material | Steel |
| Bolt Thread Size | M16x2 |
| Machinable Width - Maximum | Not Applicable |
| Package Quantity | 1 |
