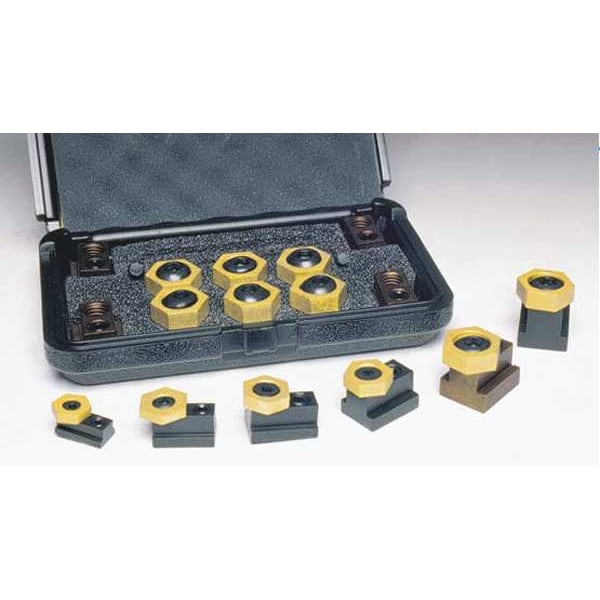

T-Slot Clamp Kit, 8mm, ST
| Item | T-Slot Fixture Clamp Kit |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M6x1 |
| Thread Length | 12 mm |
| Overall Height | 9.5 mm |
| Overall Depth | 23.2 mm |
| Drive Size | 5 mm |
| For Use With | CNC Machining Centers |
| Overall Width | 12.7 mm |
| Holding Force | 750 lb |
| Material | Steel |
| Diameter | M6 |
| T-Slot Size | 8 mm |
| Includes | (2) Hex Keys;(4) Mitee-Bite T-Nuts;(6) Mitee-Bite Fixture Clamps |
| Slot Size | 8 mm |
| Overall Length | 23.2 mm |
| Material - Machining | Steel |
| Features | Fast Set-Up Action |
| Number of Pieces | 12 |
| Application | CNC Machining Centers |
| Machinable Width - Maximum | Not Applicable |
| Head Width | 15.86 mm |
| Series | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Clamp Movement - Maximum | 1.01 mm |
| Clamping Force - Maximum | 3,558 N |
| Clamp Body Material | Steel |
| Measurement System | Metric |
| Step Height | Not Applicable |
| Bolt Thread Length | 1 mm |
| Bolt Thread Size | M6x1 |
| Clamping Face Material | Brass |
| T-Slot Width | 8 mm |
| Head Height | 4.75 mm |
| Number of Clamps | 6 |
| Clamp Face Type | Smooth |
| Clamp Type | T-Slot |
| Step Depth | Not Applicable |
| Package Quantity | 1 |
