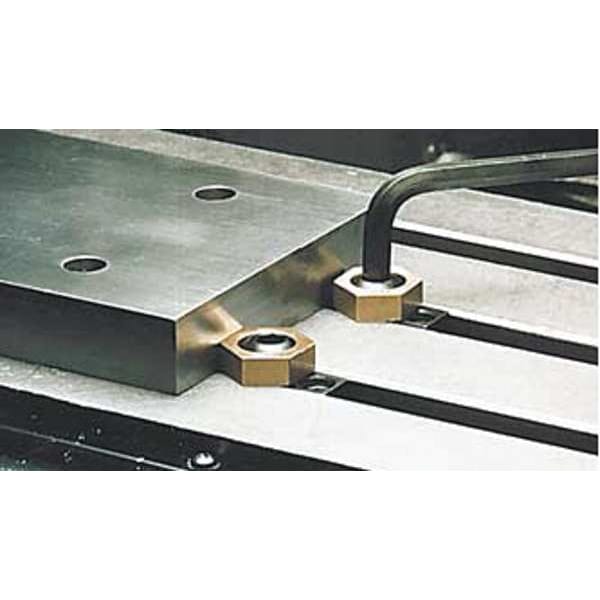

T-Slot Clamp Kit, M8 x 1.25, ST
| Item | T-Slot Fixture Clamp Kit |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M8x1.25 |
| Thread Length | 16 mm |
| Overall Depth | 27.9 mm |
| Material | Steel |
| T-Slot Size | 12 mm |
| Overall Width | 15.9 mm |
| Diameter | M8 |

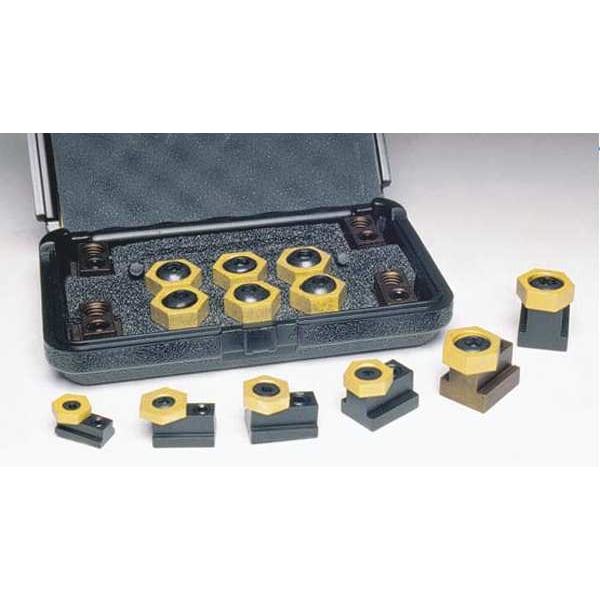

| Includes | (2) Hex Keys;(4) Mitee-Bite T-Nuts;(6) Mitee-Bite Fixture Clamps |
| Drive Size | 5 mm |
| For Use With | CNC Machining Centers |
| Overall Height | 15.9 mm |
| Holding Force | 750 lb |
| Features | Fast Set-Up Action |
| Slot Size | 12 mm |
| Number of Pieces | 12 |
| Overall Length | 27.9 mm |
| Material - Machining | Steel |
| Application | CNC Machining Centers |
| T-Slot Width | 12 mm |
| Clamp Type | T-Slot |
| Number of Clamps | 6 |
| Clamp Movement - Maximum | 1.01 mm |
| Step Height | Not Applicable |
| Head Width | 20.62 mm |
| Clamp Face Type | Smooth |
| Bolt Thread Size | M8x1.25 |
| Clamp Body Slot Length | Not Applicable |
| Clamping Force - Maximum | 3,558 N |
| Clamp Body Material | Steel |
| Measurement System | Metric |
| Step Depth | Not Applicable |
| Series | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Head Height | 4.75 mm |
| Clamping Face Material | Brass |
| Bolt Thread Length | 1.25 mm |
| Package Quantity | 1 |
