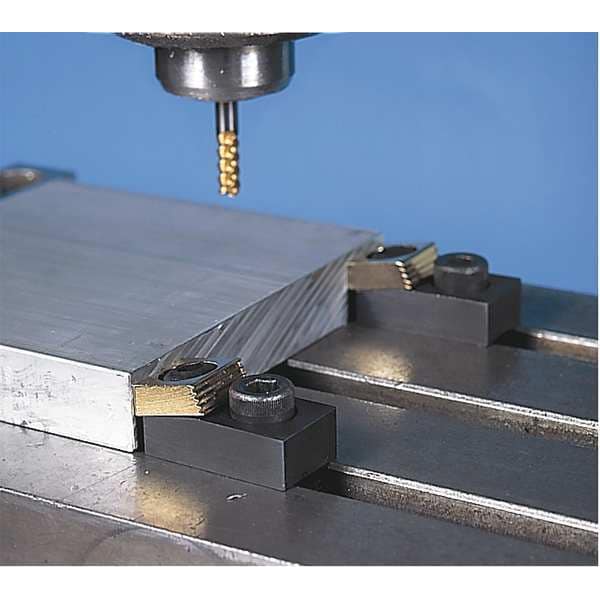

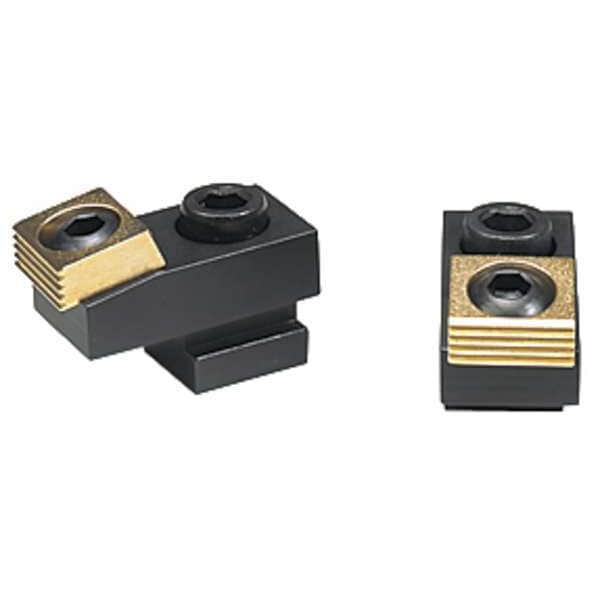

T-Slot Toe Clamp, 11/16in.
| Item | T-Slot Toe Clamp |
|---|---|
| Clamp Style | Cam Action - Toe |
| Thread Size | 1/2"-13 |
| Thread Length | 19/32 in |
| Includes | T-Nut |
| Overall Height | 1 in |
| Holding Force | 4000 lb |
| Overall Width | 1.12 in |
| Overall Depth | 1-15/16 in |
| Drive Size | 5/16 in |
| Material | Steel |
| Diameter | 1/2 in |
| For Use With | CNC Machining Centers |
| T-Slot Size | 11/16 in |
| Slot Size | 1-15/16 in |
| Clamp Type | T-Slot Toe |
| T-Slot Width | 11/16 in |
| Features | Low Profile |
| Overall Length | 1.94 in |
| Bolt Thread Length | 0.5938 in |
| Head Length | 1 in |
| Clamp Body Slot Length | Not Applicable |
| Clamp Face Type | Smooth, Serrated |
| Clamp Body Material | Steel |
| Bolt Thread Size | 1/2"-13 |
| Step Depth | Not Applicable |
| Step Height | Not Applicable |
| Head Width | 1 in |
| Clamping Force - Maximum | 17,790 N |
| Head Height | 0.38 in |
| Series | Not Applicable |
| Measurement System | Inch |
| Clamp Movement - Maximum | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Clamping Face Material | Steel |
| Package Quantity | 1 |
