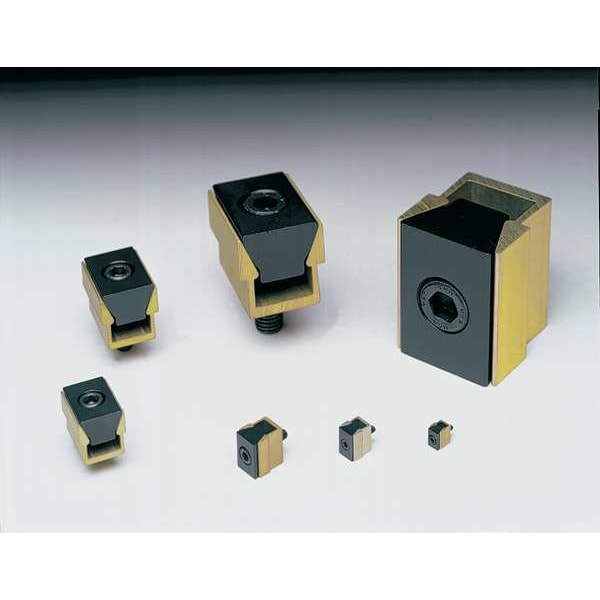

Uniforce(R) Clamps, Wedge, 5/16-18, PK4
| Item | Uniforce Clamp |
|---|---|
| Clamp Style | Wedge |
| Thread Size | 5/16"-18 |
| Thread Length | 1-1/4 in |
| Drive Size | 1/4 in |
| For Use With | Workholding |
| Overall Width | 0.98 in |
| Diameter | 5/16 in |
| Material | Aluminum/Steel |
| Overall Depth | 1-1/4 in |
| Holding Force | 2000 lb |
| Overall Height | 1.02 in |
| Clamp Type | Wedge |
| Features | Compact and Economical Design, Minimizes Tool Changes |
| Overall Length | 1-1/4 in |
| For Use On | Pallet Changers |
| T-Slot Width | Not Applicable |
| Slot Size | 1-1/4 in |
| Application | Clamping Flat or Round Work Pieces |
| Step Height | Not Applicable |
| Series | Uniforce |
| Clamp Body Material | Steel |
| Bolt Thread Size | 5/16"-18 |
| Number of Clamps | 4 |
| Machinable Width - Maximum | Not Applicable |
| Head Length | 1-1/4 in |
| Bolt Thread Length | 1-1/4 in |
| Clamp Face Type | Smooth |
| Clamping Face Material | Steel |
| Clamp Movement - Maximum | Not Applicable |
| Measurement System | Inch |
| Head Height | 1.02 in |
| Clamp Body Slot Length | Not Applicable |
| Step Depth | Not Applicable |
| Head Width | 0.98 in |
| Clamping Force - Maximum | 11,125 N |
| Package Quantity | 4 |
