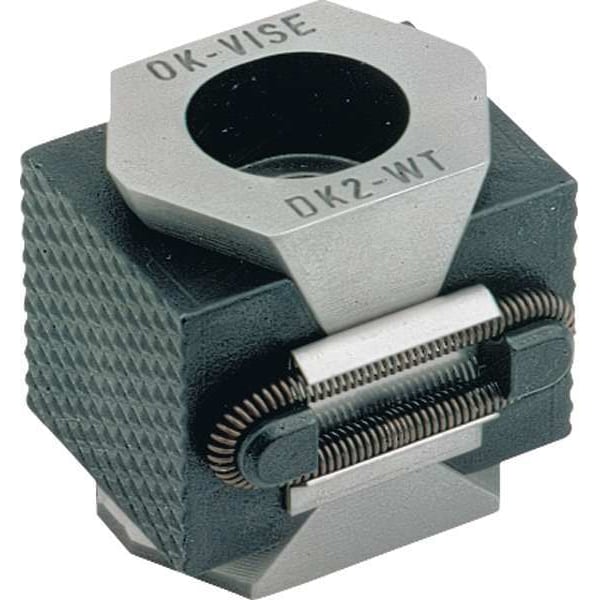

Vise Clamp, Double Wedge, 1/2-13 x 1-1/2in
| Item | Double Wedge OK Vise Clamp |
|---|---|
| Type | Double Wedge |
| Features | High Holding Force |
| Package Quantity | 1 |
| Size | 1/2-13 x 1-1/2 in (Mounting Screw) |
| Number of Pieces | 1 |
| For Use With | Fixtures |
| Includes | Mounting Screw |
| Bolt Thread Size | 1/2 in to 13 |
| Step Height | Not Applicable |
| Clamp Movement - Maximum | 0.08 in |
| Overall Length | 1.93 in |
| Clamp Body Slot Length | Not Applicable |
| Bolt Thread Length | 1-1/2 in |
| Head Width | 1.18 in |
| Workpiece Tapping Distance | Not Applicable |
| T-Slot Width | Not Applicable |
| Number of Clamps | 1 |
| Series | OK-Vise |
| Head Length | 1.65 in |
| Step Depth | Not Applicable |
| Clamp Type | Wedge |
| Overall Width | 1.61 in |
| Machinable Width - Maximum | Not Applicable |
| Clamp Face Type | Serrated |
| Overall Height | 1.62 in |
| Clamping Force - Maximum | 88,965 N |
| Drive Size | 1/2 in |
| Measurement System | Inch |
| Head Height | 1.42 in |
