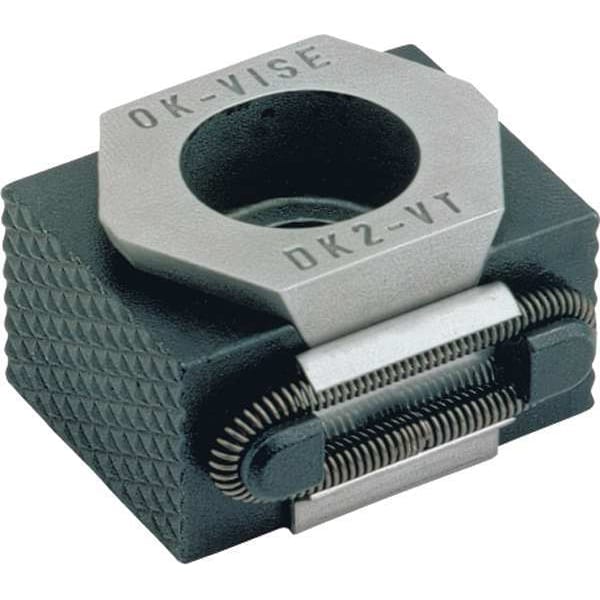

Vise Clamp, Single Wedge, 1/2-13 x 1-1/4in
| Item | Single Wedge OK Vise Clamp |
|---|---|
| Type | Single Wedge |
| Features | High Holding Force |
| Number of Pieces | 1 |
| Package Quantity | 1 |
| For Use With | Fixtures |
| Size | 1/2-13 x 1-1/4 in (Mounting Screw) |
| Includes | Mounting Screw |
| Drive Size | 1/2 in |
| Bolt Thread Size | 1/2 in to 13 |
| Workpiece Tapping Distance | Not Applicable |
| Clamp Type | Wedge |
| Measurement System | Inch |
| Clamping Force - Maximum | 64,500 N |
| Machinable Width - Maximum | Not Applicable |
| Head Height | 0.87 in |
| Overall Width | 1.61 in |
| Head Width | 1.18 in |
| T-Slot Width | Not Applicable |
| Number of Clamps | 1 |
| Step Depth | Not Applicable |
| Clamp Movement - Maximum | 0.08 in |
| Clamp Body Slot Length | Not Applicable |
| Bolt Thread Length | 1-1/4 in |
| Series | OK-Vise |
| Clamp Face Type | Serrated |
| Step Height | Not Applicable |
| Overall Height | 1.03 in |
| Head Length | 1.65 in |
| Overall Length | 1.93 in |
