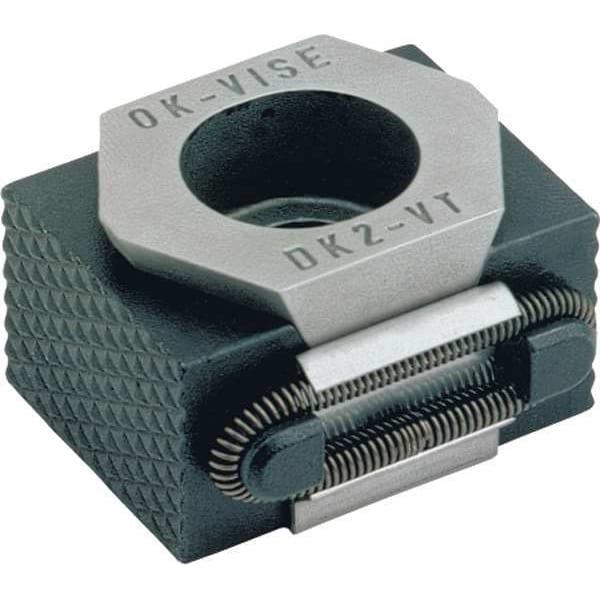

Vise Clamp, Single Wedge, 5/16-18 x 3/4in
| Item | Single Wedge OK Vise Clamp |
|---|---|
| Type | Single Wedge |
| Features | High Holding Force |
| Package Quantity | 1 |
| Number of Pieces | 1 |
| For Use With | Fixtures |
| Size | 5/16-18 x 3/4 in (Mounting Screw) |
| Includes | Mounting Screw |
| Clamp Face Type | Serrated |
| Overall Width | 1.14 in |
| Clamping Force - Maximum | 24,465 N |
| Machinable Width - Maximum | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Clamp Movement - Maximum | 0.06 in |
| Overall Height | 0.69 in |
| Step Depth | Not Applicable |
| Measurement System | Inch |
| Workpiece Tapping Distance | Not Applicable |
| Number of Clamps | 1 |
| Step Height | Not Applicable |
| Series | OK-Vise |
| T-Slot Width | Not Applicable |
| Bolt Thread Size | 5/16 in to 18 |
| Head Length | 1.06 in |
| Bolt Thread Length | 3/4 in |
| Head Height | 0.59 in |
| Clamp Type | Wedge |
| Overall Length | 1.22 in |
| Head Width | 0.83 in |
| Drive Size | 5/16 in |
