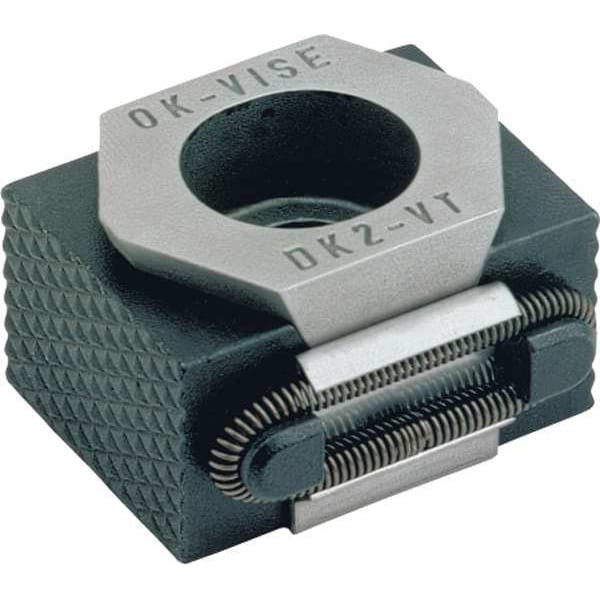

Vise Clamp, Single Wedge, 5/8-11 x 1-1/2in
| Item | Single Wedge OK Vise Clamp |
|---|---|
| Type | Single Wedge |
| Features | High Holding Force |
| Size | 5/8-11 x 1-1/2 in (Mounting Screw) |
| For Use With | Fixtures |
| Package Quantity | 1 |
| Number of Pieces | 1 |
| Includes | Mounting Screw |
| Overall Length | 2.57 in |
| Workpiece Tapping Distance | Not Applicable |
| Bolt Thread Size | 5/8 in to 11 |
| Clamp Type | Wedge |
| Clamp Movement - Maximum | 0.145 in |
| Step Height | Not Applicable |
| Overall Height | 1.34 in |
| Head Length | 2.24 in |
| Measurement System | Inch |
| Head Width | 1.65 in |
| Step Depth | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| T-Slot Width | Not Applicable |
| Clamping Force - Maximum | 110,760 N |
| Clamp Face Type | Serrated |
| Drive Size | 5/8 in |
| Head Height | 1.14 in |
| Overall Width | 2.2 in |
| Series | OK-Vise |
| Number of Clamps | 1 |
| Bolt Thread Length | 1-1/2 in |
| Machinable Width - Maximum | Not Applicable |
