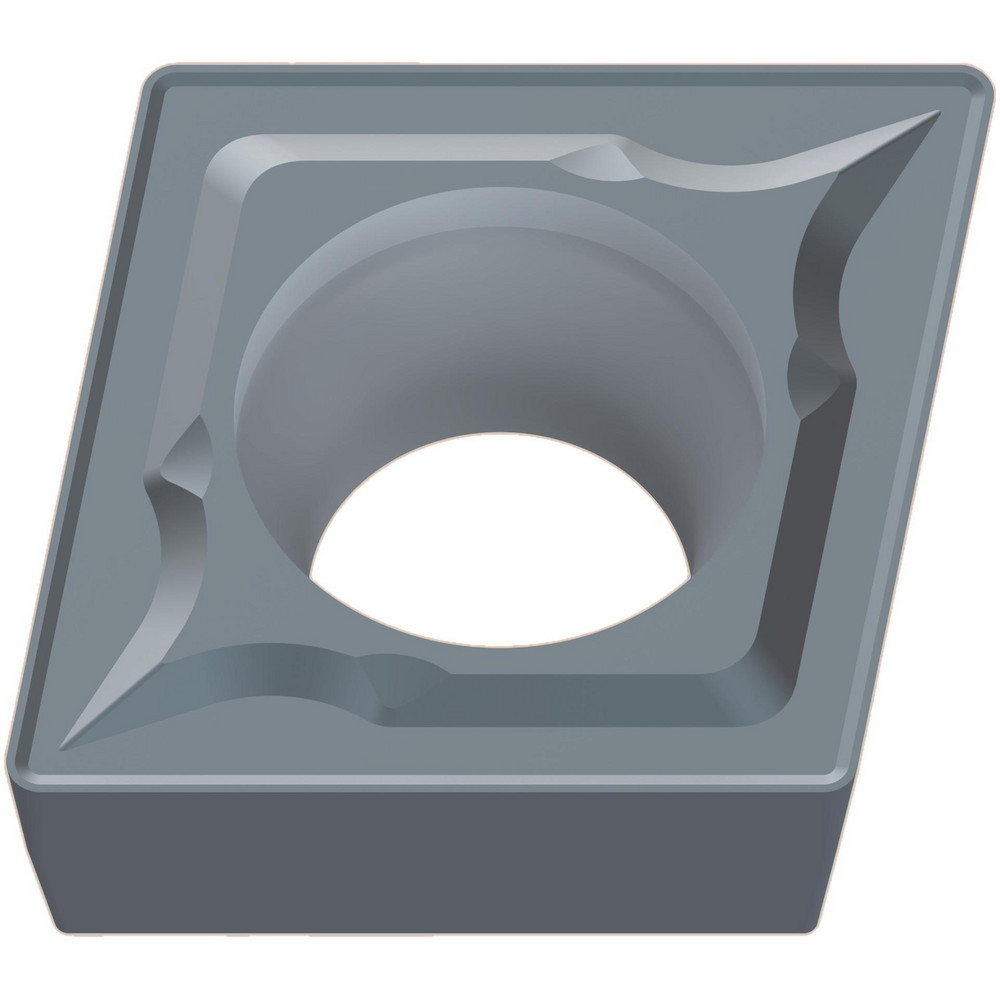

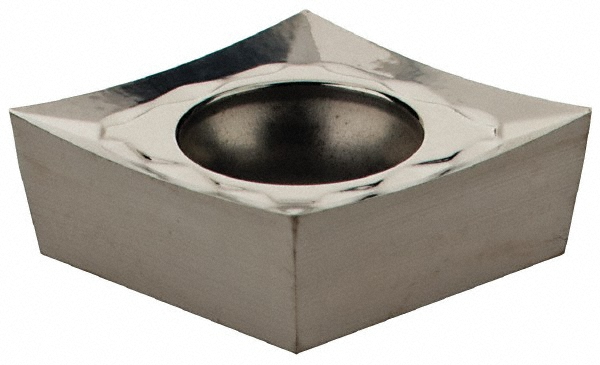

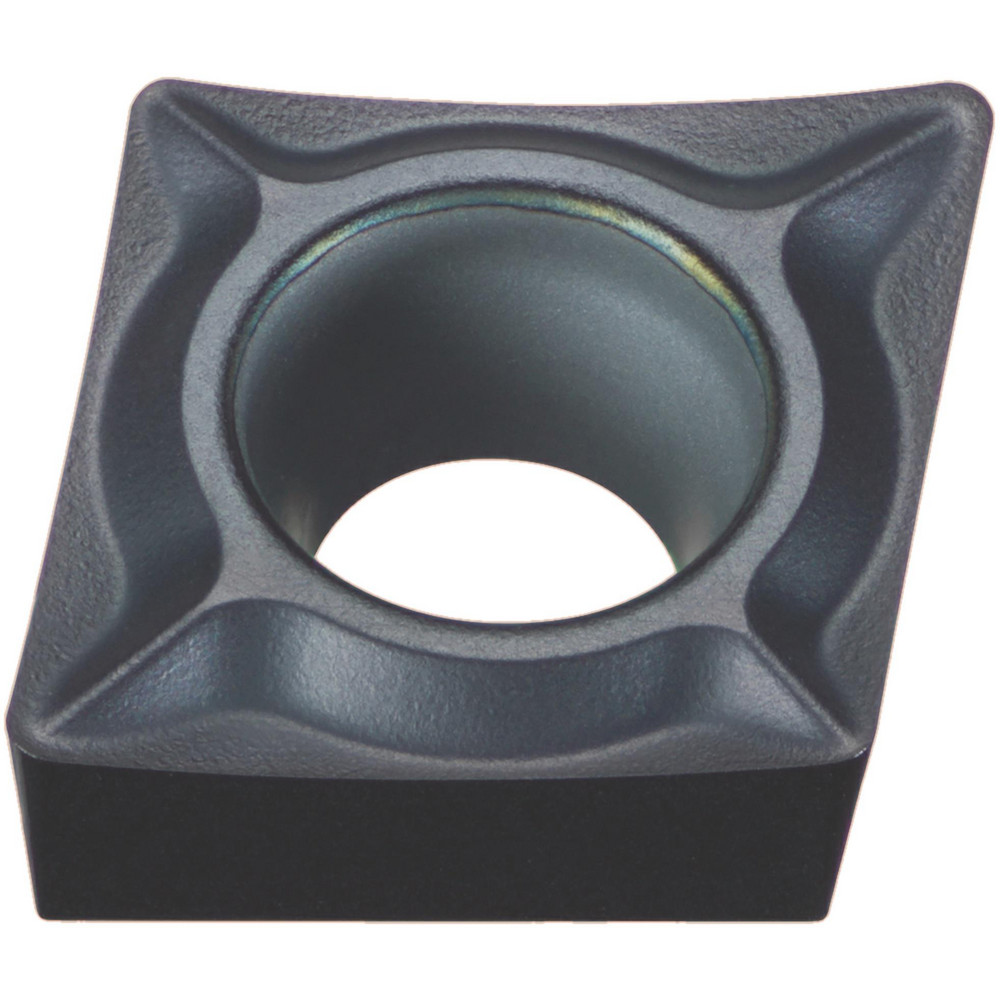

PVD Finish, Neutral, 0.3750" Inscribed Circle, 0.0079" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg
| Insert Style | CCGT |
|---|---|
| ISO Size Code | 09T302 |
| ANSI Size Code | 32.50.5 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Material | Carbide |
| Manufacturer Grade | MP9015 |
| Coating/Finish | PVD |
| Relief Angle | 7 |
| Insert Thickness (Decimal Inch) | 0.1562 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| ISO Insert Code | CCGT09T302 |
| ANSI Insert Code | CCGT32.50.5 |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | S |
| Chip Breaker | FS |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
| undefined | undefined |
| MSC Number | MSC# 88557483 |
