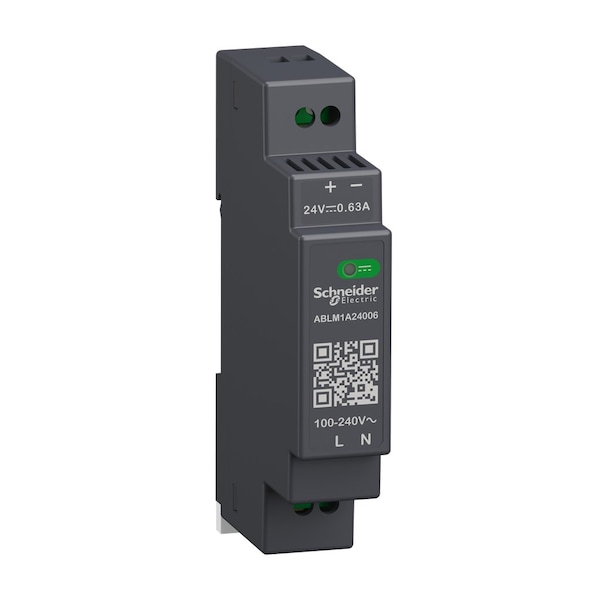

Power Supply, 90/264V AC, 24V DC, 15W, 0.625A, DIN Rail/Panel
| Item | Power Supply |
|---|---|
| Input Voltage | 90/264V AC |
| Output Voltage | 24V DC |
| Power Rating | 15 W |
| Output Amps | 0.625 A |
| Mounting | DIN Rail/Panel |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 3.58 in |
| Width | 0.71 in |
| Depth | 2.19 in |
| Hz | 50/60 Hz |
| Operating Temp. Range | -20 to 55 deg C |
| Ripple Volts Regulation | Less Than 100mV |
| Hold Up Time | Greater Than 10 msec @ 115 V AC, Greater Than 60 msec @ 230 V AC |
| IP Rating | IP20 |
| Load Regulation | Less Than 1% |
| Status Indicator | Green LED |
| Protection | Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset |
| Connection | Screw |
| Series | ABL |
| Line Regulation | Less Than 0.5% |
| Features | Automatic Reset, It Can Be Directly Connected To Central Distribution Board, The Product Can Be Directly Mounted On The Panel |
| Standards | CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cUL, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, NEC: Class 2, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1 |
| Power Factor | 0.51 to 115 V AC, 0.4 to 230 V AC |
| Line And Load Regulation | Less than 0.5% network in line; Less than 1% network 0 to 100% load |
| Residual Ripple | Less than 100 mV |
| Turn-On Time | Less than 2 s |
| Output Coupling | serial |
| KW Rating | 15 W |
| Network System Compatibility | TN; TT; IT |
| Ambient Air Temperature For Operation | -13 to 131°F (-25 to 55°C) without current derating mounting position A Less than 6561.68 ft (2000 m); 131 to 158°F (55 to 70°C) with current derating of 2.67% per°C mounting position A Less than 6561.68 ft (2000 m) |
| Dielectric Strength | 3000 V AC input/output |
| Input Protection Type | Integrated fuse (not interchangeable) 3.15 A; External protection (recommended) 20 A Curve B; External protection (recommended) 20 A Curve C; External protection (recommended) 2 A Curve B; External protection (recommended) 2 A Curve C |
| Output Protection Type | Against overload and short-circuits automatic reset; Against over temperature manual reset; Against overvoltage manual reset |
| Supply | SELV IEC 60950-1; SELV IEC 60204-1; SELV IEC 60364-4-41 |
| Meantime Between Failure | 3000000 h at 77°F (25°C), full load; 1000000 h at 131°F (55°C), 80% load |
| Electromagnetic Emission | Conducted emissions IEC 61000-6-3; Radiated emissions IEC 61000-6-4 |
| Vibration Resistance | 3 mm 2 to 9 Hz)IEC 60721-3-3; 10 m/s² 9 to 200 Hz)IEC 60721-3-3 |
| Current Consumption | Less than 0.4 A 115 V AC; Less than 0.25 A 230 V AC |
| Efficiency | 81% 115 V AC; 81% 230 V AC |
| Service Life | 10 year(s) |
| Pollution Degree | 2 |
| Startup With Capacitive Loads | 3000 µF |
| Power Supply Output Current | 0.625 A |
| Holding Time | Greater than 10 ms 115 V AC; Greater than 60 ms 230 V AC |
| Power Dissipation in W | 3.5 W |
| Electromagnetic Immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Electromagnetic field immunity test - test level: 15 V/m (80 MHz to 2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2 to 2.7 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2.7 to 6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted disturbances - test level: 15 V (0.15 to 80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50 to 60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips - test level: 100% (1 cycle) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 60% (10 cycles) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 30% (25 cycles) conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1 |
| Overvoltage Category | II |
| Product Certifications | EAC, RCM, CB, CE, CUL Listed, CUL Recognized, KC, NEC class 2, Scheme |
| Maximum Leakage Current | 0.25 mA 240 V AC |
| Operating Altitude | Less than 6561.68 ft (2000 m) overvoltage category III; 2000 m to 5000 m overvoltage category II |
| Shock Resistance | 150 m/s² 11 ms |
| Inrush Current | 15 A 115 V; 30 A 230 V |
| Electrical Shock Protection Class | class II without PE connection |
| Current - Inrush | 30 A |
| Maximum Efficiency @ 115V AC | 81% |
| Mean Time Between Failures (MTBF) | 3,000,000 hr |
| Current - Output | 0.625 A |
| Output Power - Rated | 15 W |
| Wire Size - Minimum | 20 AWG |
| Input Frequency - Nominal | 50/60 Hz |
| Operating Temperature - Maximum | 158 deg F |
| Maximum Efficiency @ 230V AC | 81% |
| Housing Material | Plastic |
| Wire Connection Type | Terminals |
| Wire Size - Maximum | 16 AWG |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
