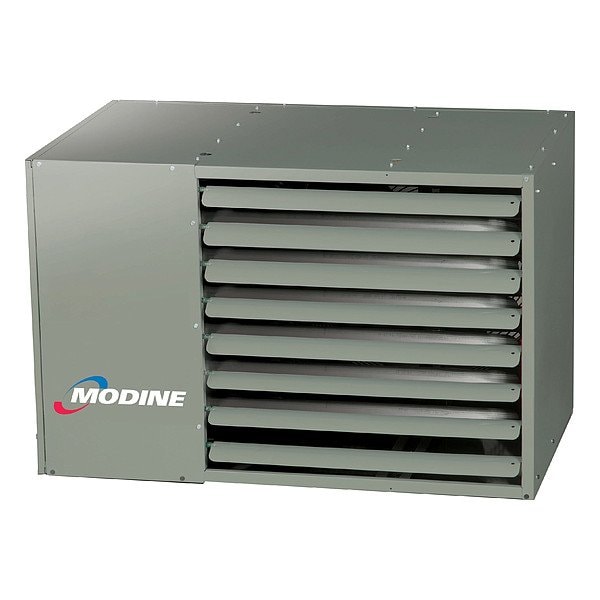

Gas Wall and Ceiling Unit Heater, 2,140 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 2,140 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Heat Output | 123,000 BtuH |
| Product Type | Unit Heater |
| Overall Depth | 22-1/2 in |
| Overall Width | 35-1/2 in |
| Motor Type | PSC |
| Fuel Consumption | 142.9 cfh |
| Flue Diameter | 4 in |
| Mounting Height | 15 ft |
| Fuel Type | Propane |
| Profile Type | Standard |
| Phase | 1 |
| Heating Capacity Output | 123,000 BtuH |
| Thermal Efficiency Rating | 82% |
| Ignition Type | Direct Spark |
| Mounting Location | Wall |
| Heater Voltage | 115 V AC |
| Maximum Amperage | 15 A |
| Gas Connection Size | 1/2 in |
| Frequency | 60 Hz |
| Features | Bent Tube, Low-Profile Design, Enclosed Fan Motors and all Controls are Mounted Inside the Cabinet for Protection from Airborne Moisture and Dust |
| Fan Diameter | 20 in |
| Motor Speed | 1,075 rpm |
| Heating Capacity Input | 150,000 BtuH |
| Heat Exchanger Material | Aluminized Steel |
| Mounting Hole Diameter | 3/8 in |
| Air Temperature Rise | 53 deg F |
| Standards | ETL, cETLus Listed |
| Vent Type | Sidewall Venting Kit |
| Overall Height | 23-1/16 in |
| Manufacturers Warranty Length | 10 yr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
