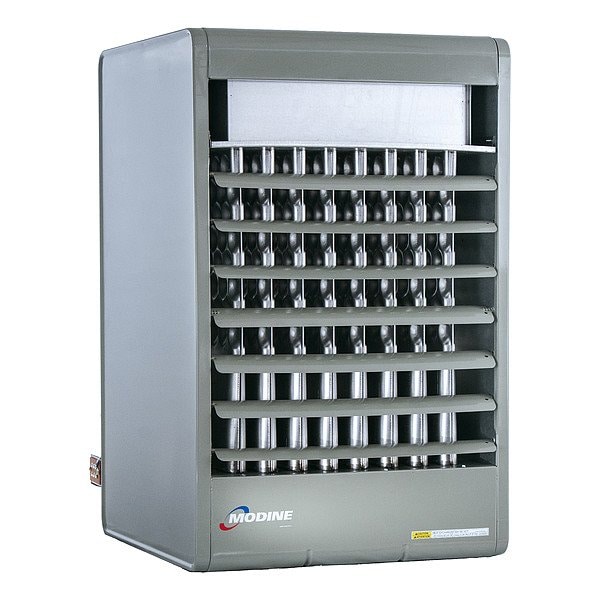

Gas Wall and Ceiling Unit Heater, 2,870 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 2,870 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Flue Diameter | 5 in |
| Phase | 1 |
| Ignition Type | Direct Spark |
| Thermal Efficiency Rating | 83% |
| Product Type | Unit Heater |
| Gas Connection Size | 1/2 in |
| Motor Type | PSC |
| Heater Voltage | 115 V AC |
| Mounting Height | 15 ft |
| Fan Diameter | 20 in |
| Air Temperature Rise | 52 deg F |
| Profile Type | Standard |
| Overall Height | 25-13/16 in |
| Heat Output | 166,000 BtuH |
| Heating Capacity Input | 200,000 BtuH |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Vent Type | Power |
| Overall Width | 42-1/2 in |
| Frequency | 60 Hz |
| Heat Exchanger Material | Aluminized Steel |
| Heating Capacity Output | 166,000 BtuH |
| Maximum Amperage | 5.1 A |
| Motor Speed | 1,075 rpm |
| Fuel Type | Natural Gas, Propane |
| Mounting Hole Diameter | 3/8 in |
| Overall Depth | 29-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
