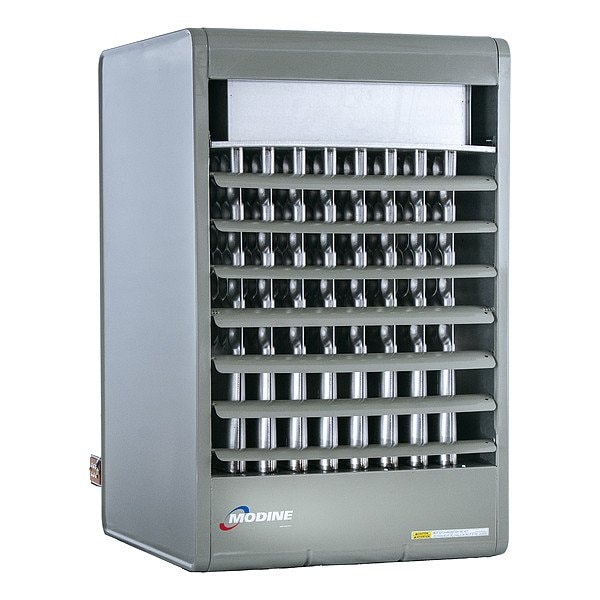

Gas Wall and Ceiling Unit Heater, 3,700 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 3,700 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Heater Voltage | 115 V AC |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Gas Connection Size | 1/2 in |
| Motor Type | PSC |
| Heat Output | 207,500 BtuH |
| Fan Diameter | 20 in |
| Vent Type | Power |
| Mounting Height | 19 ft |
| Overall Height | 31-5/16 in |
| Overall Depth | 29-1/2 in |
| Heating Capacity Output | 207,500 BtuH |
| Motor Speed | 1,075 rpm |
| Thermal Efficiency Rating | 83% |
| Heating Capacity Input | 250,000 BtuH |
| Maximum Amperage | 7.7 A |
| Profile Type | Standard |
| Ignition Type | Direct Spark |
| Heat Exchanger Material | Aluminized Steel |
| Frequency | 60 Hz |
| Flue Diameter | 6 in |
| Mounting Hole Diameter | 3/8 in |
| Air Temperature Rise | 50 deg F |
| Phase | 1 |
| Overall Width | 42-1/2 in |
| Product Type | Unit Heater |
| Fuel Type | Natural Gas, Propane |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
