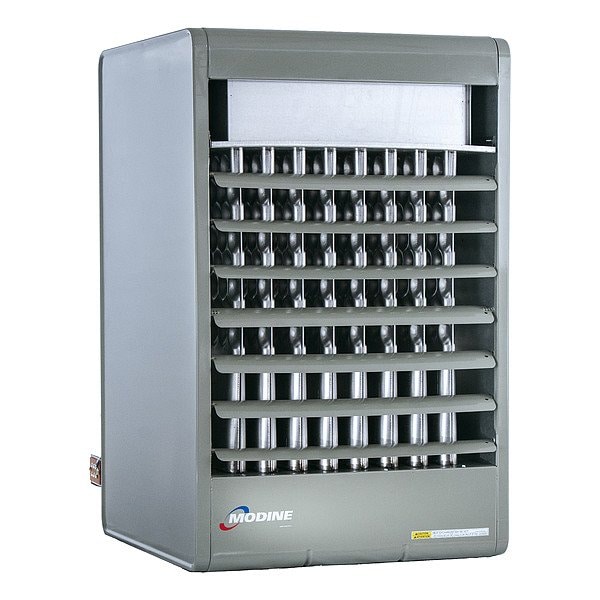

Gas Wall and Ceiling Unit Heater, 3,700 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 3,700 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Overall Depth | 29-1/2 in |
| Motor Type | PSC |
| Phase | 1 |
| Mounting Height | 19 ft |
| Heat Exchanger Material | Aluminized Steel |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Air Temperature Rise | 50 deg F |
| Heating Capacity Input | 250,000 BtuH |
| Flue Diameter | 6 in |
| Heater Voltage | 115 V AC |
| Thermal Efficiency Rating | 83% |
| Vent Type | Power |
| Motor Speed | 1,075 rpm |
| Heat Output | 207,500 BtuH |
| Fuel Type | Natural Gas, Propane |
| Overall Height | 31-5/16 in |
| Maximum Amperage | 7.7 A |
| Profile Type | Standard |
| Frequency | 60 Hz |
| Fan Diameter | 20 in |
| Mounting Hole Diameter | 3/8 in |
| Heating Capacity Output | 207,500 BtuH |
| Product Type | Unit Heater |
| Ignition Type | Direct Spark |
| Gas Connection Size | 1/2 in |
| Overall Width | 42-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
