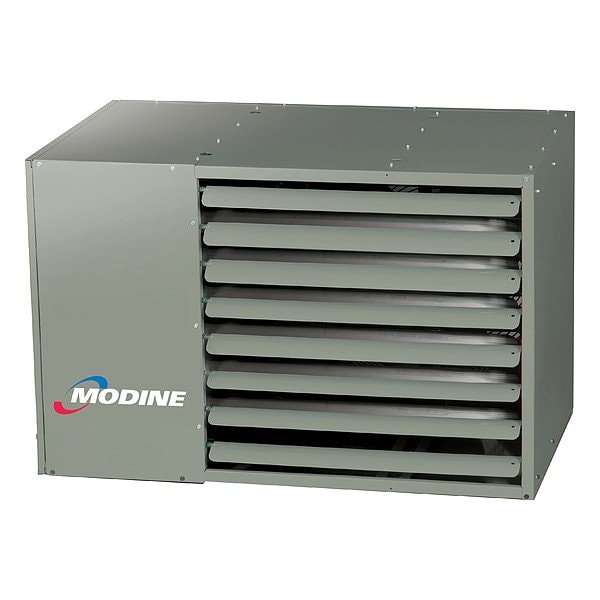

Gas Wall and Ceiling Unit Heater, 3,995 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 3,995 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Heater Voltage | 115 V AC |
| Mounting Height | 18 ft |
| Fuel Type | Propane |
| Vent Type | Sidewall Venting Kit |
| Heating Capacity Input | 250,000 BtuH |
| Heat Exchanger Material | Aluminized Steel |
| Frequency | 60 Hz |
| Thermal Efficiency Rating | 83% |
| Heating Capacity Output | 207,500 BtuH |
| Product Type | Unit Heater |
| Motor Type | PSC |
| Mounting Hole Diameter | 3/8 in |
| Motor Speed | 1,075 rpm |
| Maximum Amperage | 15 A |
| Flue Diameter | 6 in |
| Standards | ETL, cETLus Listed |
| Fan Diameter | 22 in |
| Overall Height | 31-5/16 in |
| Mounting Location | Wall |
| Features | Bent Tube, Low-Profile Design, Enclosed Fan Motors and all Controls are Mounted Inside the Cabinet for Protection from Airborne Moisture and Dust |
| Ignition Type | Direct Spark |
| Overall Width | 42-1/2 in |
| Heat Output | 207,500 BtuH |
| Profile Type | Standard |
| Phase | 1 |
| Air Temperature Rise | 47 deg F |
| Manufacturers Warranty Length | 10 yr |
| Overall Depth | 29-1/2 in |
| Gas Connection Size | 3/4 in |
| Fuel Consumption | 238.1 cfh |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
