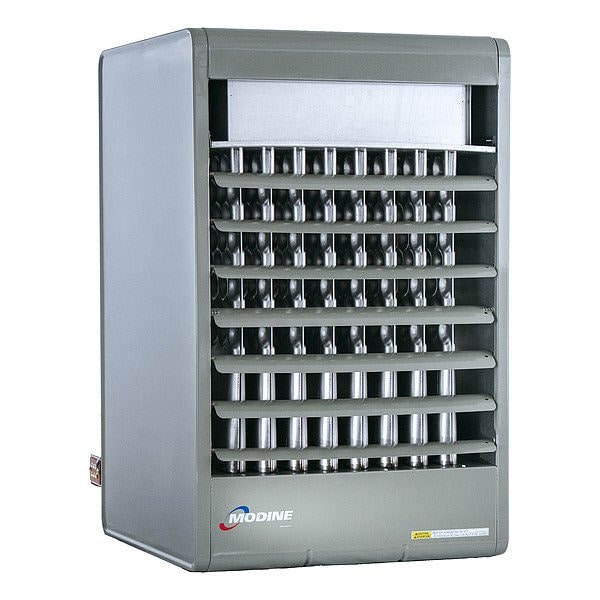

Gas Wall and Ceiling Unit Heater, 4,460 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 4,460 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Heat Exchanger Material | Aluminized Steel |
| Heat Output | 249,000 BtuH |
| Mounting Hole Diameter | 3/8 in |
| Overall Width | 42-1/2 in |
| Motor Type | PSC |
| Frequency | 60 Hz |
| Phase | 1 |
| Fan Diameter | 22 in |
| Product Type | Unit Heater |
| Flue Diameter | 6 in |
| Heater Voltage | 115 V AC |
| Air Temperature Rise | 50 deg F |
| Overall Depth | 29-1/2 in |
| Profile Type | Standard |
| Ignition Type | Direct Spark |
| Maximum Amperage | 9.8 A |
| Vent Type | Power |
| Fuel Type | Natural Gas, Propane |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Mounting Height | 21 ft |
| Thermal Efficiency Rating | 83% |
| Heating Capacity Input | 300,000 BtuH |
| Heating Capacity Output | 249,000 BtuH |
| Gas Connection Size | 1/2 in |
| Overall Height | 31-5/16 in |
| Motor Speed | 1,075 rpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
