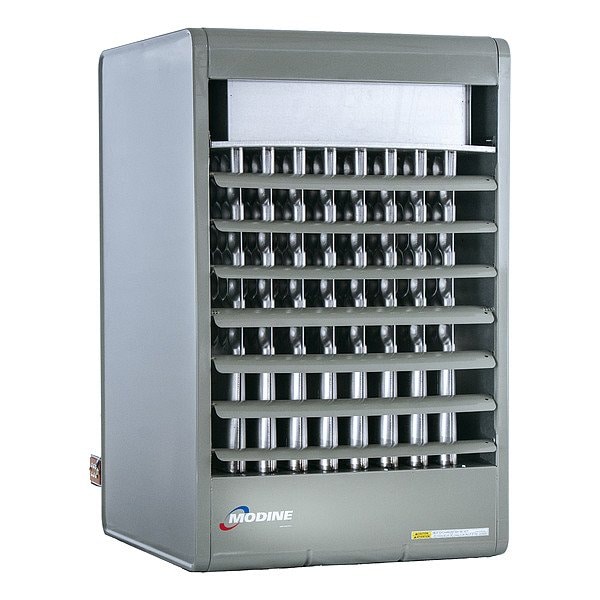

Gas Wall and Ceiling Unit Heater, 4,870 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 4,870 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Motor Speed | 1,125 rpm |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Product Type | Unit Heater |
| Vent Type | Power |
| Overall Height | 39-9/16 in |
| Maximum Amperage | 11.1 A |
| Fuel Type | Natural Gas, Propane |
| Profile Type | Standard |
| Air Temperature Rise | 53 deg F |
| Heating Capacity Input | 350,000 BtuH |
| Heating Capacity Output | 290,500 BtuH |
| Heat Exchanger Material | Aluminized Steel |
| Flue Diameter | 6 in |
| Mounting Height | 19 ft |
| Phase | 1 |
| Motor Type | PSC |
| Heat Output | 290,500 BtuH |
| Overall Depth | 29-1/2 in |
| Thermal Efficiency Rating | 83% |
| Overall Width | 42-1/2 in |
| Heater Voltage | 115 V AC |
| Gas Connection Size | 3/4 in |
| Ignition Type | Direct Spark |
| Fan Diameter | 22 in |
| Frequency | 60 Hz |
| Mounting Hole Diameter | 3/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
