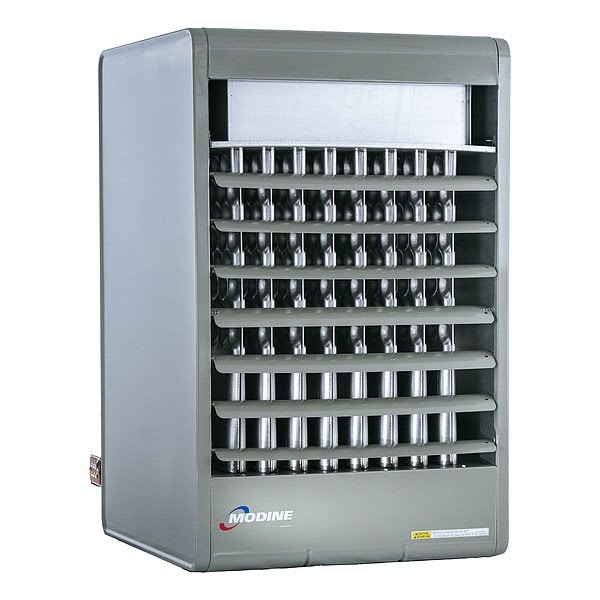

Gas Wall and Ceiling Unit Heater, 5,440 cfm, Propeller
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 5,440 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Phase | 1 |
| Heat Output | 332,000 BtuH |
| Fan Diameter | 24 in |
| Profile Type | Standard |
| Maximum Amperage | 11.1 A |
| Heating Capacity Output | 332,000 BtuH |
| Flue Diameter | 6 in |
| Gas Connection Size | 3/4 in |
| Overall Height | 39-9/16 in |
| Fuel Type | Natural Gas, Propane |
| Heat Exchanger Material | Aluminized Steel |
| Motor Type | PSC |
| Mounting Hole Diameter | 3/8 in |
| Motor Speed | 1,125 rpm |
| Mounting Height | 19 ft |
| Air Temperature Rise | 54 deg F |
| Heater Voltage | 115 V AC |
| Frequency | 60 Hz |
| Ignition Type | Direct Spark |
| Vent Type | Power |
| Overall Width | 42-1/2 in |
| Features | 100% Shut-Off if the Unit Does not Light, to Ensure that Unburned Gases do not Build up in the Unit, Safety Pressure Switch Monitors the Vent Pipe to Assure Flue Gases Leave the Building and do not Back up in the Space |
| Product Type | Unit Heater |
| Thermal Efficiency Rating | 83% |
| Overall Depth | 29-1/2 in |
| Heating Capacity Input | 400,000 BtuH |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
