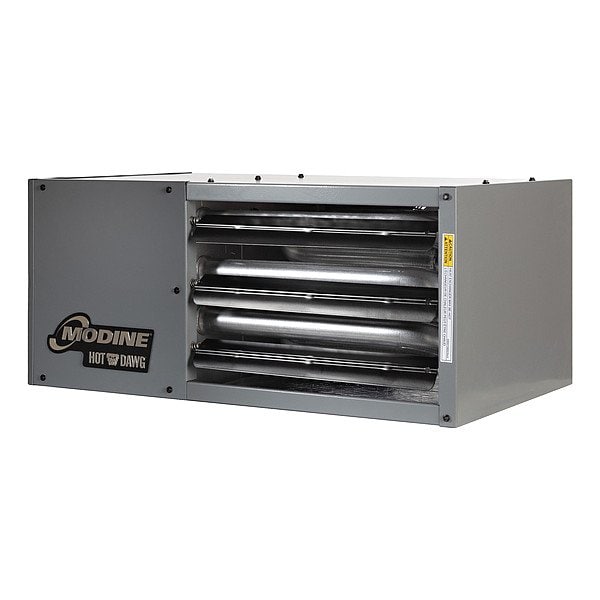

Gas Wall and Ceiling Unit Heater, 505 cfm
| Combustion Type | Power Vented |
|---|---|
| Fan Type | Propeller |
| Air Flow | 505 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Thermal Efficiency Rating | 83% |
| Heating Capacity Input | 30,000 BtuH |
| Gas Connection Size | 1/2 in |
| Phase | 1 |
| Overall Width | 26-13/16 in |
| Motor Type | PSC |
| Ignition Type | Direct Spark |
| Air Temperature Rise | 44 deg F |
| Heat Output | 24,900 BtuH |
| Manufacturers Warranty Length | 10 yr |
| Heating Capacity Output | 24,900 BtuH |
| Vent Type | Power |
| Standards | ETL, cETLus Listed |
| Heat Exchanger Material | Aluminized Steel |
| Fan Diameter | 10 in |
| Mounting Height | 10 ft |
| Overall Depth | 22 in |
| Heater Voltage | 115 V AC |
| Profile Type | Standard |
| Overall Height | 12-3/16 in |
| Mounting Hole Diameter | 3/8 in |
| Flue Diameter | 3 in |
| Fuel Consumption | 28.6 cfh |
| Product Type | Unit Heater |
| Motor Speed | 1,550 rpm |
| Fuel Type | Natural Gas, Propane |
| Features | Finger-Proof Fan Guards on all Units, Power Vented Model Simplifies Side-Wall or Roof Venting with a Small-Diameter Vent Pipe, Reduce the need for Maintenance with the Permanently Lubricated Motor |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
