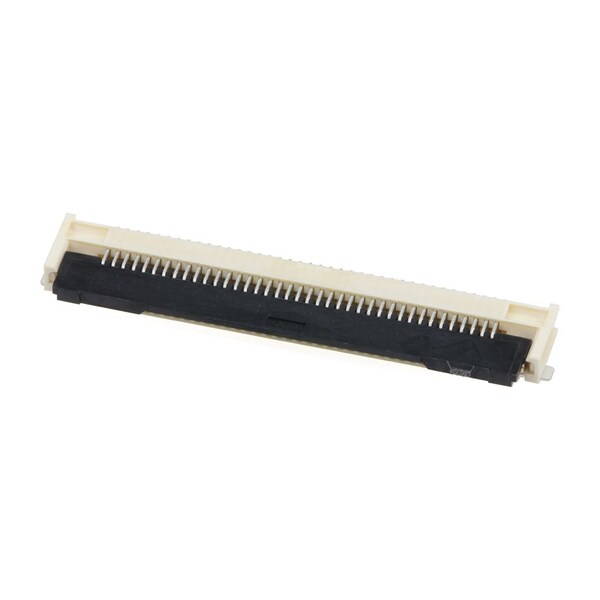

0.5 Fpc Zif Btm Cont Embt Pkg 39Ckt
| Color | Beige |
|---|---|
| Item | FFC FPC Connector |
| Max. Voltage | 50V AC/DC |
| Series | 505110 |
| Hole Center to Center | 0.5 mm |
| Sub-Category | Connectors |
| Material | Liquid Crystal Polymer |
| Max. Temp. | 125 deg C |
| Terminal Finish | Gold over Nickel |
| Number of Contacts | 39 |
| Number of Rows | 1 |
| Contact Plating Thickness | 0.051 µm |
| Contact Finish | Gold |
| Current Rating | 0.5 A |
| Circuits (Loaded) | 39 |
| Pitch - Mating Interface | 0.5 mm |
| Mated Height | 1.9 mm |
| Voltage - Maximum | 50 V |
| PCB Locator | No |
| PCB Retention | Yes |
| Orientation | Right Angle |
| PCB Mounting | Surface Mount |
| Actuator Type | Front Flip |
| Wire/Cable Type | FFC, FPC |
| Temperature Range - Operating | -40° to +150°C |
| Material - Resin | Liquid Crystal Polymer |
| Material - Plating Termination | Gold |
| Polarized to PCB | Yes |
| Material - Plating Mating | Gold |
| Durability (mating cycles max) | 20 |
| Product Name | Easy-On |
| Current - Maximum per Contact | 0.5 A |
| Material - Metal | Copper Alloy |
| Plating min - Mating | 0.051 um |
| Stackable | No |
| Contact Position | Bottom |
| Package Quantity | 1 |
