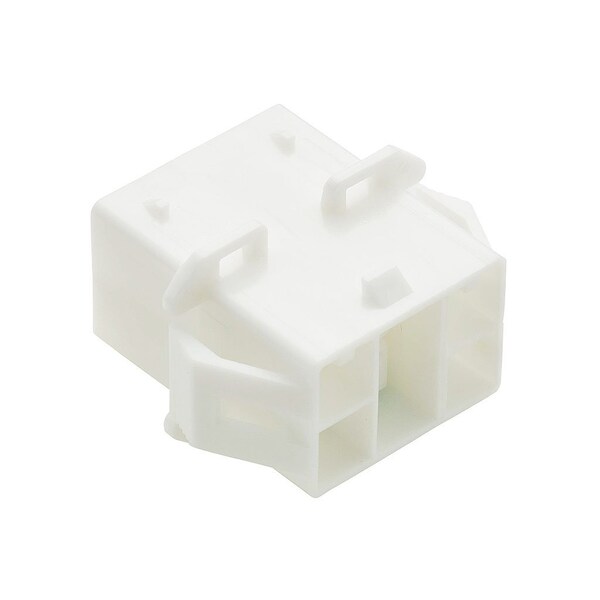

El conector Molex 070 de 6 pines con protección de oídos es perfecto para tus necesidades de conexión segura y confiable. Fabricado con materiales de alta calidad y diseño resistente, este conector garantiza un rendimiento óptimo en cualquier aplicación. ¡Haz tu conexión con tranquilidad y confianza!
| Number of Rows | 2 |
|---|---|
| Series | 35150 |
| Application | Power, Wire-to-Wire |
| Material - Resin | PC, PET |
| Temperature Range - Operating | -40° to +110°C |
| Glow-Wire Capable | Yes |
| Pitch - Mating Interface | 7.3 mm |
| Keying to Mating Part | None |
| Panel Mount | Yes |
| Lock to Mating Part | Yes |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Product Name | VersaBlade |
| Stackable | No |
| Circuits (maximum) | 6 |
| Flammability | 94V-0 |
| CSA | LR19980 |
| Color - Resin | Yellow |
| Breakaway | No |
| Gender | Receptacle |
| Package Quantity | 1 |
