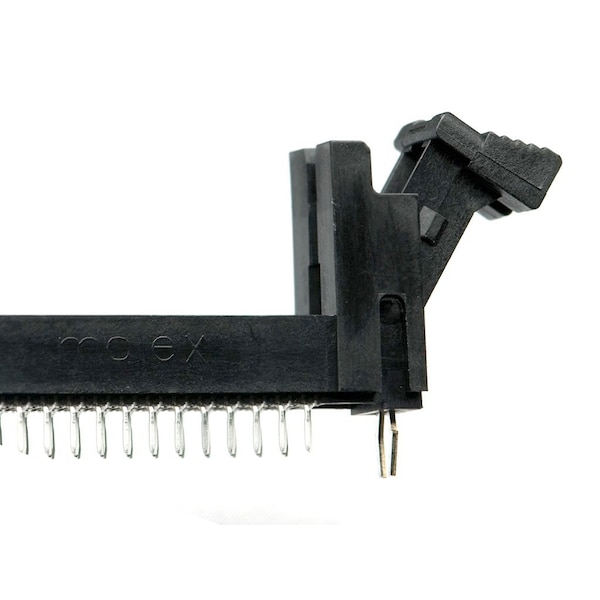

0.85mm DDR4 DIMM con tecnología T/H 0.76Aulf y 288 contactos.
| Color | Black |
|---|---|
| Max. Voltage | 29V AC/DC |
| Series | 78726 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Material | Nylon |
| Terminal Type | Through Hole |
| Hole Center to Center | 0.85 mm |
| Current Rating | 0.75 A |
| Number of Contacts | 288 |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Contact Finish | Gold Plated |
| Plating min - Mating | 0.762 um |
| JEDEC Outline | MO-309 |
| Current - Maximum per Contact | 0.75 A |
| Durability (mating cycles max) | 25 |
| PC Tail Length | 3.5 mm |
| CSA | LR19980 |
| Entry Angle | Vertical |
| Material - Plating Termination | Tin |
| Max-Cycle | 2 |
| Temperature Range - Operating | -55° to +85°C |
| Material - Resin | Nylon |
| Material - Plating Mating | Gold |
| Keying to Mating Part | None |
| Circuits (Loaded) | 288 |
| Pitch - Mating Interface | 0.85 mm |
| Material - Metal | Copper Alloy |
| Voltage - Maximum | 29V AC (RMS)/DC |
| Component Type | Socket |
| Product Name | DDR4 DIMM |
| PCB Retention | Yes |
| Max-Temp | 260 |
| Flammability | 94 V to 0 |
| PCB Locator | Yes |
| PCB Thickness - Recommended | 3 mm |
| UL | E29179 |
| Max-Duration | 5 |
| Package Quantity | 1 |
