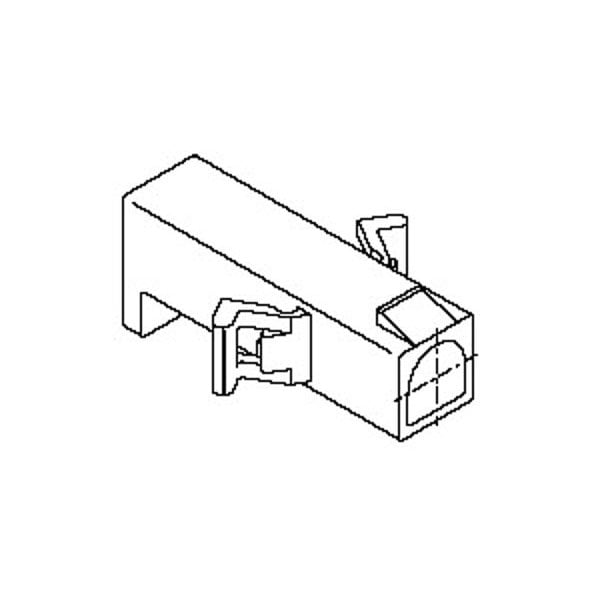

.093 Nylon Housing 319101P201
| Item | Pin and Socket Connector |
|---|---|
| Number of Rows | 1 |
| Number of Contacts | 1 |
| Series | 3191 |
| Sub-Category | Crimp Housings |
| Flammability Rating | UL 94V-0 |
| Standards | CSA Certified, UL E29179 |
| Current Rating | 12 A |
| Connector Type | Plug |
| Application | Power, Wire-to-Wire |
| Color | Natural |
| Material | Nylon |
| Max. Temp. | 105 deg C |
| Circuits (maximum) | 1 |
| Stackable | No |
| Glow-Wire Capable | No |
| Product Name | Standard .093" |
| Material - Resin | Nylon |
| Lock to Mating Part | Yes |
| Keying to Mating Part | None |
| Current - Maximum per Contact | 12 A |
| Flammability | 94V-0 |
| Breakaway | No |
| Panel Mount | Yes |
| UL | E29179 |
| Temperature Range - Operating | -40° to +105°C |
| Polarized to Mating Part | Yes |
| CSA | LR19980 |
| Package Quantity | 1 |
