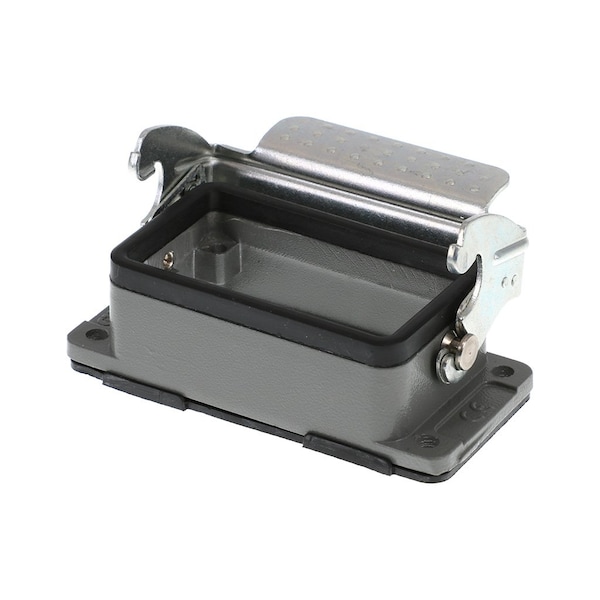

Carcasa a granel Molex 10B STD de 1 nivel
| CSA | 256883 |
|---|---|
| Material - Gasket | NBR |
| Material - Housing | Die-cast Aluminum |
| Number of Levers | 1 |
| Voltage - Maximum | 500 V |
| Mounting Style | Bulkhead |
| Lock to Mating Part | Yes |
| Housing Coating | Polyester Powder |
| UL | E249674 |
| Housing Color | Grey RAL 7037 |
| Material - Lever | Galvanized Steel |
| Standard | ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2, EN 61984 |
| Product Name | GWconnect |
| Series | 93601 |
| Component Type | Single Lever Bulkhead Housing |
| IP Rating | IP66 |
| Type | STD |
| Component Size | 10B «57X27» |
| Package Quantity | 1 |
