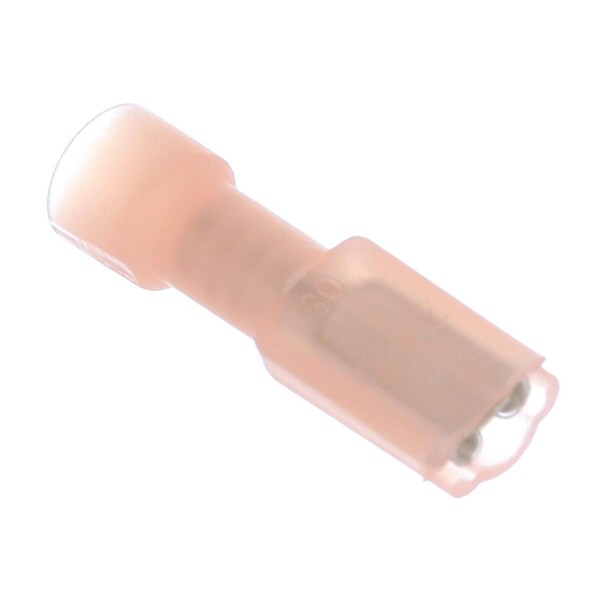

.110 X .020 FEMALE FIQD (AA-2204)
| CSA | LR18689 |
|---|---|
| Material - Metal | Brass |
| Wire Size AWG | 18, 20, 22 |
| Plating min - Mating | 4.064µm |
| Barrel Type | Closed |
| Voltage - Maximum | 600 V |
| Insulation | Nylon |
| Plating min - Termination | 4.064µm |
| Wire Insulation Diameter | 3.43 mm max. |
| Temperature Range - Operating | -65° to +105°C |
| Material - Resin | Nylon |
| Orientation | Straight |
| Material - Plating Termination | Tin |
| Tab Thickness | 0.51 mm |
| UL | E79133 |
| Color - Resin | Salmon |
| Material - Plating Mating | Tin |
| Flammability | 94V-2 |
| Gender | Female |
| Termination Interface: Style | Compression, Crimp |
| Tab Width | 2.79 mm |
| Package Quantity | 1 |
