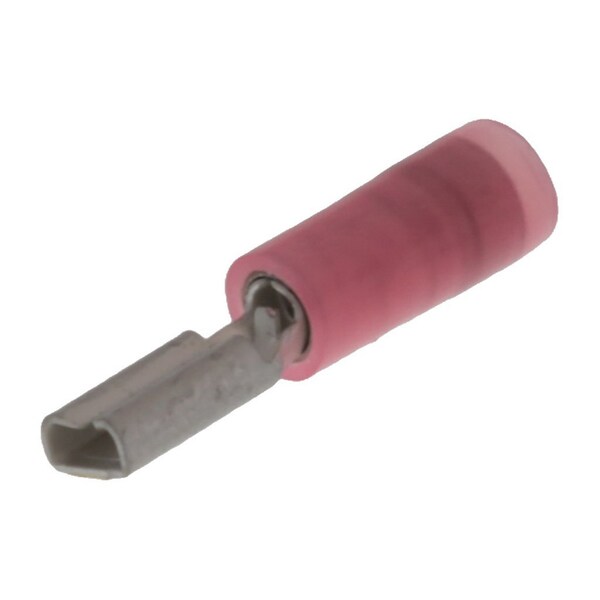

.110X.032 Female Qd Avikrimp (Aa-8134)
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Standards | CSA Listed; UL E79133 |
| Seam | Closed |
| Connection Material | Brass |
| Max. Temp. | 105 deg C |
| Connection Type | Crimp, Compression, Female |
| Max. Voltage | 300 V |
| Insulation Dia | 2.90mm max. |
| Insulated | Partial |
| CSA | LR18689 |
| Gender | Female |
| Tab Width | 2.79 mm |
| Flammability | 94V-2 |
| Wire Size (AWG) | 18, 20, 22 |
| Termination Interface Style | Compression, Crimp |
| Lock to Mating Part | None |
| Series | 19019 |
| Tab Thickness | 0.81 mm |
| Product Name | Avikrimp |
| Temperature Range - Operating | -65° to +105°C |
| Type | Quick Disconnect |
| Plating min - Mating | 4.064 um |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| UL | E79133 |
| Orientation | Straight |
| Glow-Wire Capable | No |
| Polarized to Mating Part | No |
| Package Quantity | 1 |
