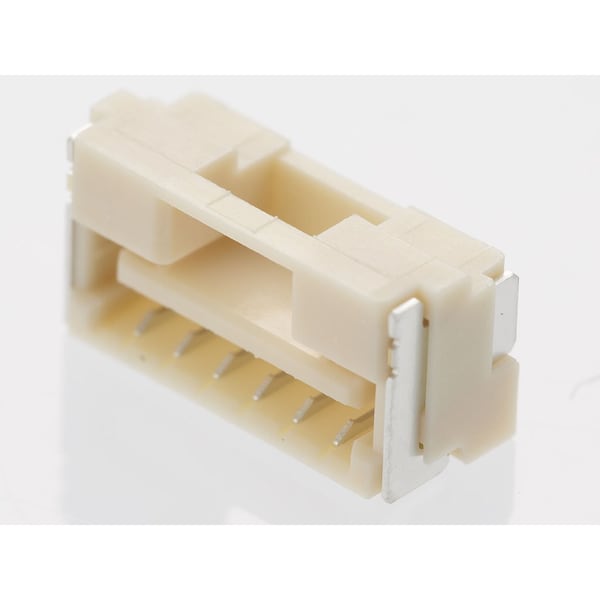

1.25 W/B Sgl R/A Rec Assy 15CktEmbsTpPkg
| Lock to Mating Part | Yes |
|---|---|
| Mated Height | 5.55 mm |
| Keying to Mating Part | Yes |
| Surface Mount Compatible (SMC) | Yes |
| Plating min - Mating | 1.016µm |
| Pitch - Termination Interface | 1.25 mm |
| Number of Rows | 1 |
| Pitch - Mating Interface | 1.25 mm |
| Termination Interface: Style | Surface Mount |
| Circuits (maximum) | 15 |
| Material - Metal | Copper Alloy |
| Color - Resin | Natural |
| UL | E29179 |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 15 |
| PCB Retention | Yes |
| Guide to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Material - Plating Mating | Tin |
| Plating min - Termination | 1.016µm |
| Temperature Range - Operating | -40° to +105°C |
| Durability (mating cycles max) | 30 |
| Current - Maximum per Contact | 1 A |
| Material - Resin | High Temperature Thermoplastic |
| Orientation | Right Angle |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Package Quantity | 1 |
