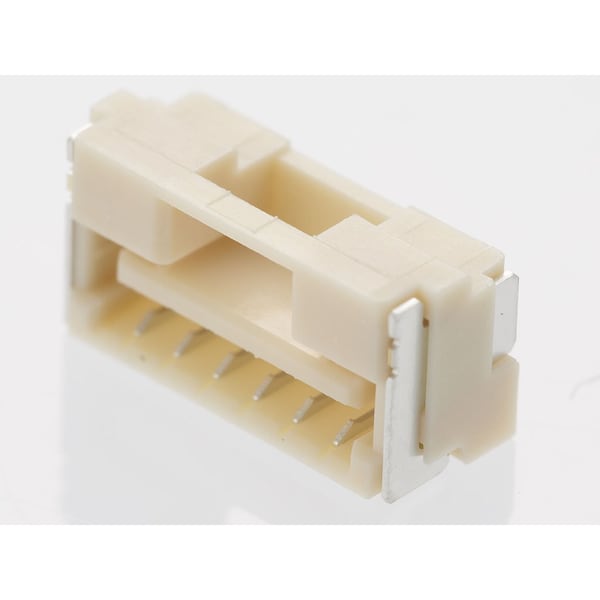

1.25 W/B SGL R/A Rec Assy 3Ckt G Plt ETP
| Plating min - Mating | 0.102µm |
|---|---|
| Number of Rows | 1 |
| Orientation | Right Angle |
| Circuits (Loaded) | 3 |
| Keying to Mating Part | Yes |
| Color - Resin | Natural |
| Plating min - Termination | 0.102µm |
| Current - Maximum per Contact | 1 A |
| Material - Metal | Copper Alloy |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Termination | Gold |
| Termination Interface: Style | Surface Mount |
| Material - Plating Mating | Gold |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Circuits (maximum) | 3 |
| Durability (mating cycles max) | 30 |
| Pitch - Termination Interface | 1.25 mm |
| Polarized to Mating Part | Yes |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Lock to Mating Part | Yes |
| Guide to Mating Part | Yes |
| Mated Height | 5.55 mm |
| Pitch - Mating Interface | 1.25 mm |
| PCB Retention | Yes |
| Package Quantity | 1 |
