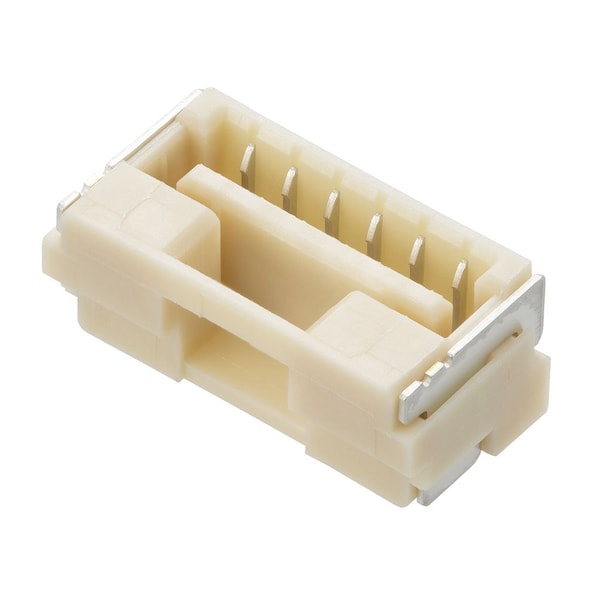

El ensamble de conector único S/T de 1.25 W/B de Molex cuenta con 13 contactos y está diseñado para ofrecer una conexión segura y fiable. El paquete de espiga de embebido facilita su instalación en aplicaciones específicas.
| Voltage - Maximum | 50V AC (RMS)/DC |
|---|---|
| Material - Plating Mating | Tin |
| Keying to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 13 |
| Temperature Range - Operating | -40° to +105°C |
| Material - Metal | Copper Alloy |
| Termination Interface: Style | Surface Mount |
| Mated Height | 7.8 mm |
| Polarized to Mating Part | Yes |
| Material - Resin | High Temperature Thermoplastic |
| UL | E29179 |
| Plating min - Mating | 1.016µm |
| Pitch - Termination Interface | 1.25 mm |
| Plating min - Termination | 1.016µm |
| Material - Plating Termination | Tin |
| PCB Retention | Yes |
| Color - Resin | Natural |
| Current - Maximum per Contact | 1 A |
| Guide to Mating Part | Yes |
| Pitch - Mating Interface | 1.25 mm |
| Orientation | Vertical |
| Circuits (maximum) | 13 |
| Number of Rows | 1 |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
