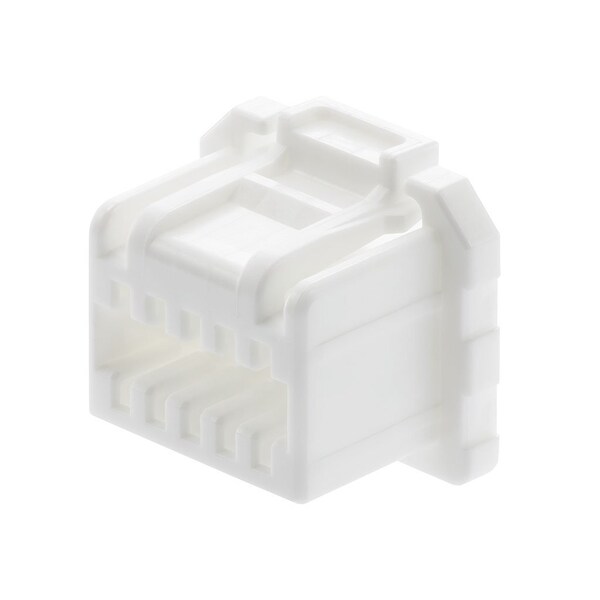

Gehäuse für Steckverbinder mit Crimpung, Micro-Lock Plus im Rastermaß 1.25 mm
| Number of Rows | 2 |
|---|---|
| Application | Signal, Wire-to-Board |
| Pitch - Mating Interface | 1.25 mm |
| Glow-Wire Capable | No |
| Series | 505432 |
| Material - Resin | PBT |
| Lock to Mating Part | Yes |
| Gender | Receptacle |
| Temperature Range - Operating | -40° to +105°C |
| UL | E29179 |
| Circuits (maximum) | 36 |
| Product Name | Micro-Lock Plus |
| Keying to Mating Part | None |
| Color - Resin | Natural |
| Polarized to Mating Part | Yes |
| Package Quantity | 1 |
