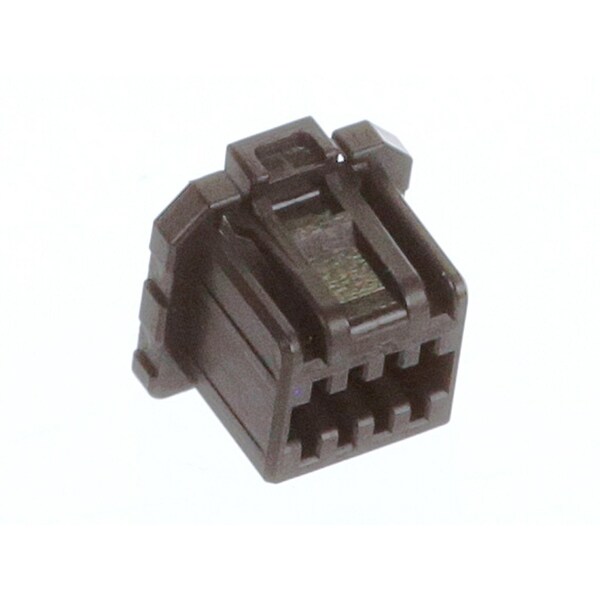

1.25W/B Dlrw Rcpt Hsg 8P W/O Cp Blk
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 204523 |
| Application | Signal, Wire-to-Board |
| Connector Type | Receptacle |
| Hole Center to Center | 1.25 mm |
| Standards | UL E29179 |
| Max. Temp. | 105 deg C |
| Material | PBT |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 8 |
| Circuits (maximum) | 8 |
| Glow-Wire Capable | No |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Material - Resin | PBT |
| Product Name | Micro-Lock Plus |
| Flammability | 94V-0 |
| Keying to Mating Part | None |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 1.25 mm |
| UL | E29179 |
| Package Quantity | 1 |
