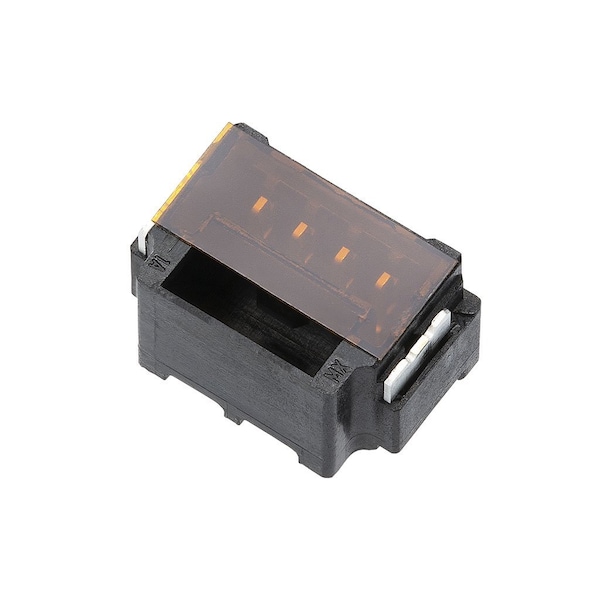

1.25Wb Mlp Ptg Sr St Assy 2Ckt Etp Blk
| Number of Rows | 1 |
|---|---|
| Standards | CSA Certified, UL E29179 |
| Material | Polyamide |
| Features | Surface Mount Compatible |
| Color | Black |
| Application | Signal, Wire-to-Board |
| Terminal Type | Surface Mount |
| Current Rating | 3.6 A |
| Terminal Finish | Tin-Bismuth Plated |
| Hole Center to Center | 1.25 mm |
| Contact Plating Thickness | 1 um |
| Contact Finish | Tin-Bismuth Plated |
| Max. Voltage | 50V AC/DC |
| Number of Contacts | 2 |
| Max. Temp. | 105 deg C |
| CSA | LR19980 |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Tin-Bismuth |
| Circuits (Loaded) | 2 |
| PCB Retention | Yes |
| Glow-Wire Capable | No |
| Material - Plating Termination | Tin-Bismuth |
| Component Type | PCB Header |
| Orientation | Vertical |
| Series | 205957 |
| Stackable | No |
| Material - Metal | Brass |
| Keying to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 3.6 A |
| Material - Resin | Polyamide |
| Robotic Placement | Vacuum Pick-Up Tape |
| Product Name | Micro-Lock Plus |
| Durability (mating cycles max) | 30 |
| Guide to Mating Part | No |
| Lock to Mating Part | Yes |
| PCB Locator | No |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Plating min - Mating | 1 um |
| UL | E29179 |
| First Mate / Last Break | No |
| Polarized to PCB | Yes |
| Pitch - Mating Interface | 1.25 mm |
| Breakaway | No |
| Shrouded | Fully |
| Package Quantity | 1 |
