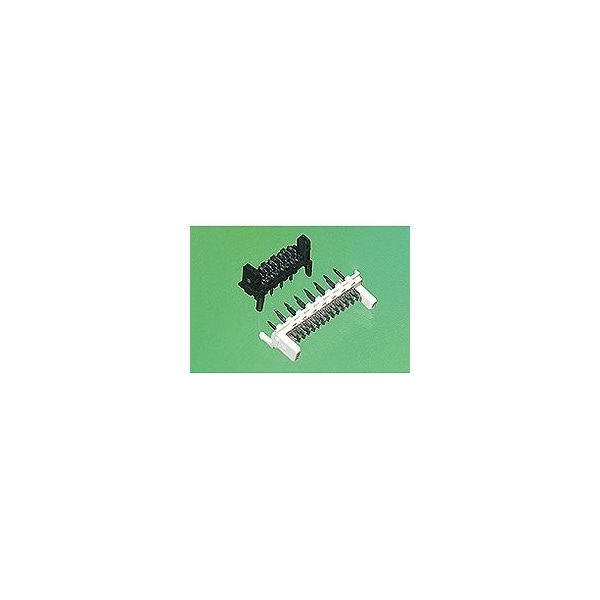

1.27mm PF Hdr LoPro Polz Blk 5Sn 6Ckt
| Color - Resin | Black |
|---|---|
| Polarized to PCB | Yes |
| Current - Maximum per Contact | 1.2 A |
| PCB Thickness - Recommended | 1.6 mm |
| Max. Cycles at Max. Process Temperature | 1 |
| Circuits (maximum) | 6 |
| Material - Resin | Polyester |
| Material - Metal | Brass |
| UL | E29179 |
| Durability (mating cycles max) | 30 |
| PCB Retention | Yes |
| Pitch - Mating Interface | 1.27 mm |
| Pitch - Termination Interface | 1.27 mm |
| Duration at Max. Process Temperature (seconds) | 5 |
| Process Temperature max. C | 230 |
| Polarized to Mating Part | Yes |
| Voltage - Maximum | 250 V |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (Loaded) | 6 |
| Material - Plating Mating | Tin |
| Termination Interface: Style | Through Hole |
| CSA | LR19980 |
| Orientation | Vertical |
| Number of Rows | 1 |
| Flammability | 94V-0 |
| Package Quantity | 1 |
