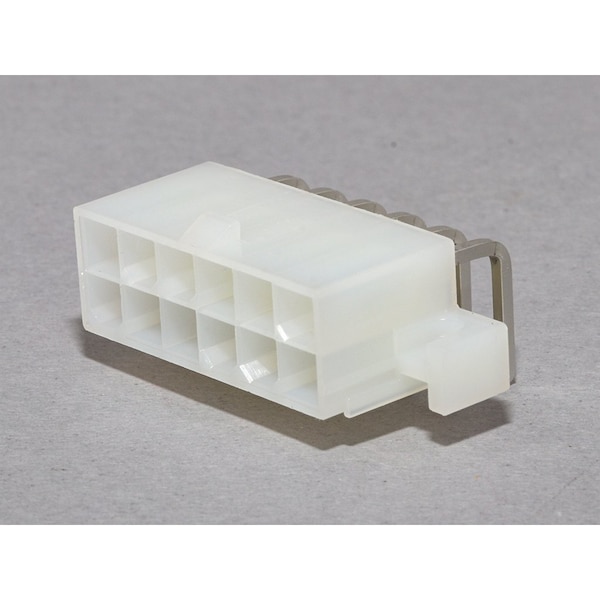

12CKT R/A MINI FIT HEADER 556912A1
| Material - Plating Termination | Matte Tin |
|---|---|
| Plating min - Mating | 2.540µm |
| Circuits (maximum) | 12 |
| Material - Plating Mating | Matte Tin |
| Plating min - Termination | 2.540µm |
| Voltage - Maximum | 600 V |
| PCB Locator | Yes |
| UL | E29179 |
| Duration at Max. Process Temperature (seconds) | 5 |
| Temperature Range - Operating | -40° to +105°C |
| Termination Interface: Style | Through Hole |
| Material - Resin | Nylon |
| Max. Cycles at Max. Process Temperature | 1 |
| Shrouded | Fully |
| Pitch - Mating Interface | 4.2 mm |
| Number of Rows | 2 |
| Lock to Mating Part | Yes |
| Color - Resin | Natural |
| Orientation | Right Angle |
| PCB Retention | Yes |
| PCB Thickness - Recommended | 1.78 mm |
| CSA | LR19980 |
| Polarized to PCB | Yes |
| Flammability | 94V-2 |
| Current - Maximum per Contact | 13 A |
| Process Temperature max. C | 260 |
| Circuits (Loaded) | 12 |
| Polarized to Mating Part | Yes |
| Pitch - Termination Interface | 4.2 mm |
| Material - Metal | Brass |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
