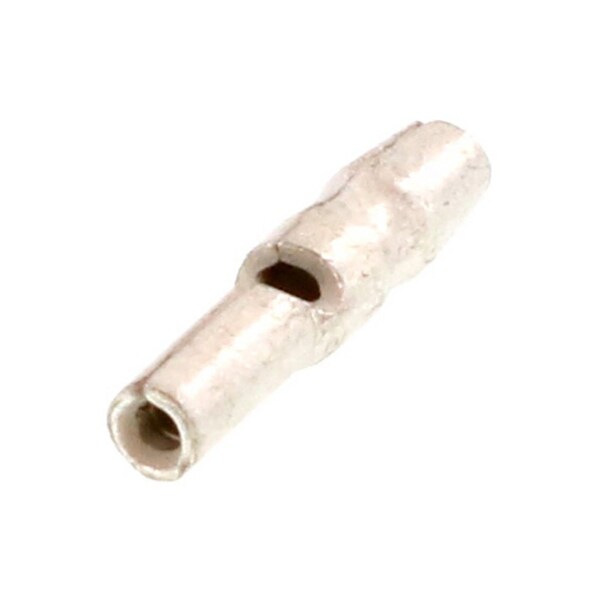

.156 Male Bullet Plug Krimp (A-169) Spm
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Connection Material | Brass |
| Seam | Closed |
| Connection Type | Male, Lugs, Screw |
| Standards | CSA Listed; UL E152602 |
| Type | Snap Plug |
| Insulation | None |
| Material - Plating Mating | Tin |
| Termination Interface Style | Lug, Screw |
| Lock to Mating Part | None |
| Wire Size (AWG) | 18, 20, 22 |
| Plating min - Mating | 2.54 um |
| UL | E152602 |
| Glow-Wire Capable | No |
| Series | 19033 |
| Product Name | Krimptite |
| Gender | Male |
| Orientation | Straight |
| CSA | LR18689 |
| Insulated | No |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
