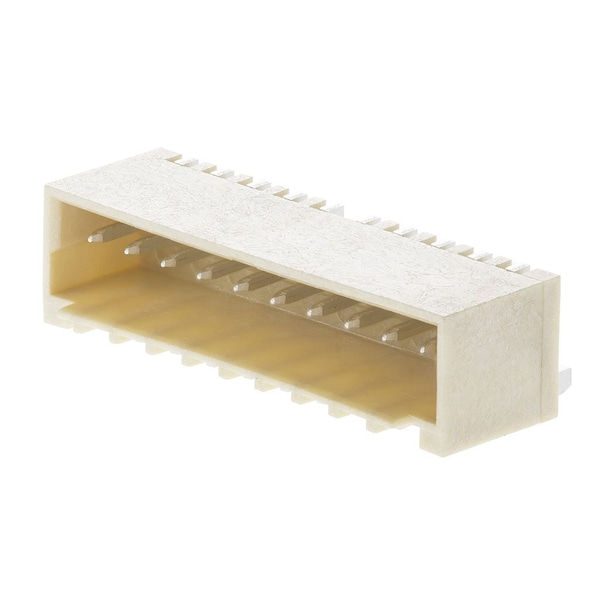

1.5mm WtB Hdr RA SMT T&R 2.54SnLF 3Ckt
| Orientation | Right Angle |
|---|---|
| Material - Resin | High Temperature Thermoplastic |
| Number of Rows | 1 |
| Material - Plating Mating | Tin |
| Current - Maximum per Contact | 2.5 A |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 1.5 mm |
| Color - Resin | Beige |
| Plating min - Termination | 2.540µm |
| Flammability | 94V-0 |
| Temperature Range - Operating | -55° to +105°C |
| Circuits (Loaded) | 3 |
| Lock to Mating Part | Yes |
| Plating min - Mating | 2.540µm |
| Circuits (maximum) | 3 |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Voltage - Maximum | 250 V |
| Keying to Mating Part | Yes |
| Shrouded | Fully |
| Durability (mating cycles max) | 10 |
| Material - Metal | Brass |
| CSA | LR19980 |
| Termination Interface: Style | Surface Mount |
| Package Quantity | 1 |
