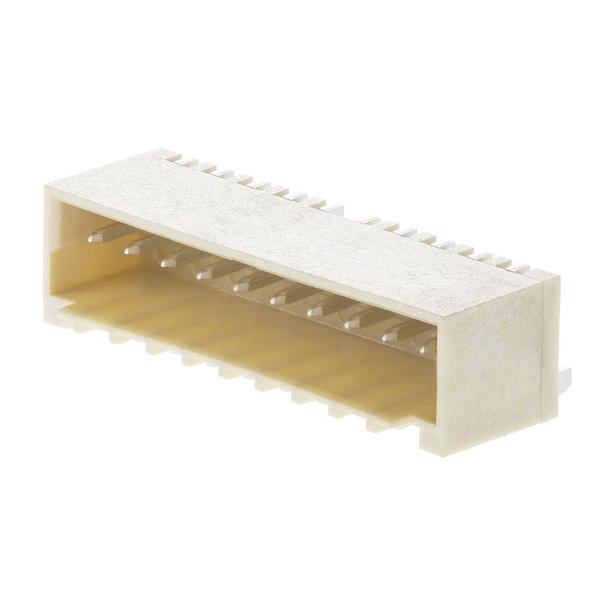

Conector de encabezado Molex de 1.5mm con montaje en superficie, tipo Right Angle (RA) en cinta y carrete (T&R) con recubrimiento de estaño 2.54SnLF y 6 circuitos.
| Shrouded | Fully |
|---|---|
| Number of Rows | 1 |
| Material - Plating Termination | Tin |
| Lock to Mating Part | Yes |
| Plating min - Termination | 2.540µm |
| Temperature Range - Operating | -55° to +105°C |
| Pitch - Mating Interface | 1.5 mm |
| Material - Metal | Brass |
| Keying to Mating Part | Yes |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Color - Resin | Beige |
| Flammability | 94V-0 |
| Termination Interface: Style | Surface Mount |
| Material - Plating Mating | Tin |
| Polarized to Mating Part | Yes |
| Orientation | Right Angle |
| Circuits (maximum) | 6 |
| CSA | LR19980 |
| Plating min - Mating | 2.540µm |
| Circuits (Loaded) | 6 |
| Durability (mating cycles max) | 10 |
| Current - Maximum per Contact | 2.5 A |
| Voltage - Maximum | 250 V |
| Package Quantity | 1 |
