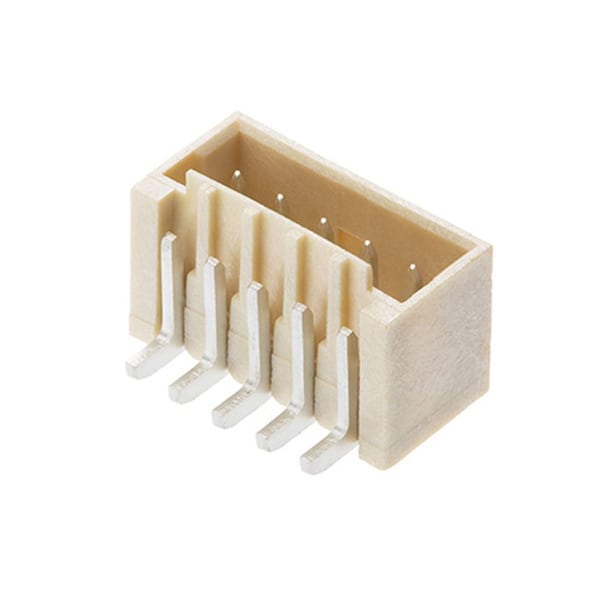

Conector Molex de 1.5mm con terminación en superficie vertical, compatible con 2.54SnLF y 6 circuitos. Presentación en cinta y rollo.
| Durability (mating cycles max) | 10 |
|---|---|
| Current - Maximum per Contact | 2.5 A |
| Circuits (maximum) | 6 |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Temperature Range - Operating | -55° to +105°C |
| Termination Interface: Style | Surface Mount |
| Lock to Mating Part | Yes |
| Plating min - Termination | 2.540µm |
| Orientation | Vertical |
| UL | E29179 |
| Material - Resin | Nylon |
| Material - Plating Mating | Tin |
| Material - Metal | Brass |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 1.5 mm |
| Number of Rows | 1 |
| Color - Resin | Beige |
| Polarized to Mating Part | Yes |
| Shrouded | Fully |
| Material - Plating Termination | Tin |
| Plating min - Mating | 2.540µm |
| Circuits (Loaded) | 6 |
| Package Quantity | 1 |
