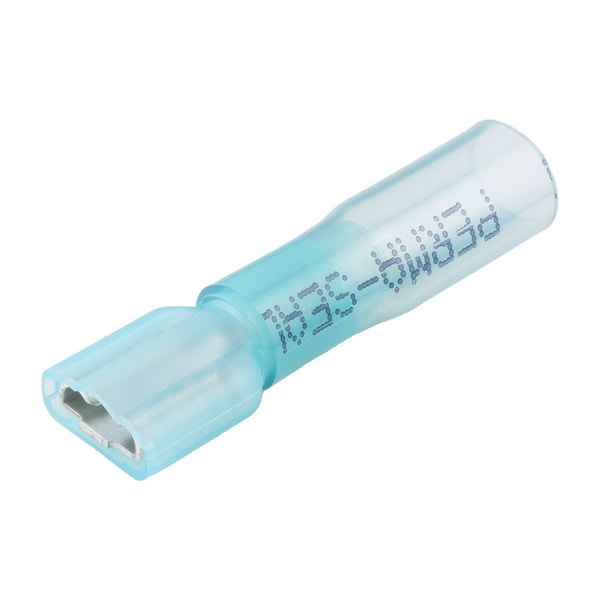

16-14 FEM COUPLER PERMA-SEAL (SBB-9263)
| Gender | Female |
|---|---|
| CSA | LR18689 |
| Material - Metal | Brass |
| Material - Plating Termination | Tin |
| Voltage - Maximum | 600 V |
| Wire Insulation Diameter | 4.32 mm max. |
| Tab Width | 6.35 mm |
| Temperature Range - Operating | -55° to +125°C |
| Insulation | NiAc |
| UL | E79133 |
| Wire Size AWG | 14, 16 |
| Color - Resin | Blue |
| Material - Resin | Nylon |
| Tab Thickness | 0.81 mm |
| Barrel Type | Closed |
| Wire Size mm² | 1.00-2.50 |
| Orientation | Straight |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
