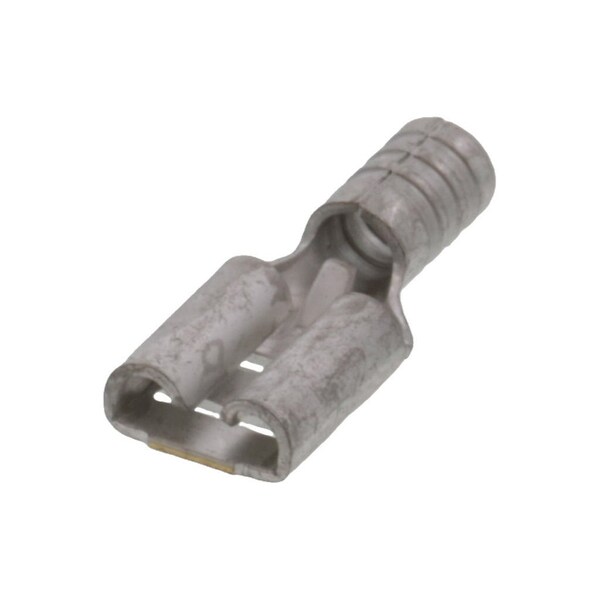

.187 X .020 Fem.Qd Krimptite Bb-1138 Spm
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Standards | CSA Listed; UL E79133 |
| Connection Material | Brass |
| Connection Type | Female |
| Seam | Closed |
| Series | 19016 |
| Voltage - Maximum | Per Wire Specification |
| Tab Width | 4.75 mm |
| Material - Plating Termination | Tin |
| Insulated | No |
| Lock to Mating Part | None |
| Wire Size (AWG) | 14, 16 |
| Product Name | Krimptite |
| Tab Thickness | 0.51 mm |
| CSA | LR18689 |
| Polarized to Mating Part | No |
| Type | Quick Disconnect |
| UL | E79133 |
| Glow-Wire Capable | No |
| Material - Plating Mating | Tin |
| Orientation | Straight |
| Insulation | None |
| Temperature Range - Operating | Per Wire Specification |
| Package Quantity | 1 |
