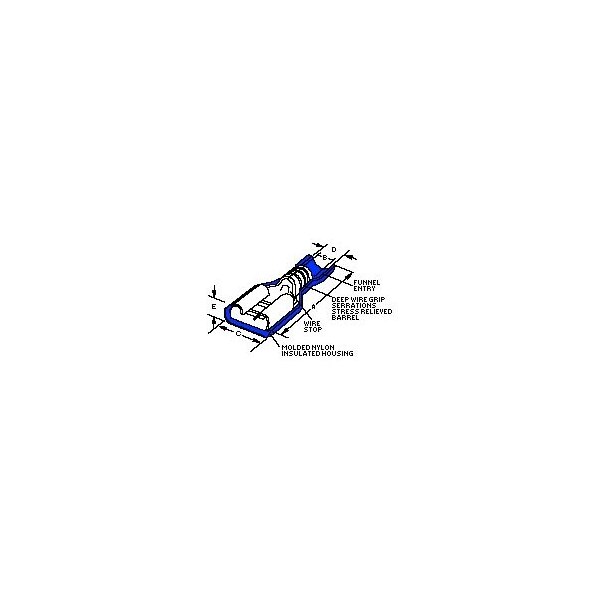

.187X.020 Female Fiqd Expanded (Bb-2207X
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Blue |
| Connection Material | Brass |
| Connection Type | Crimp, Compression, Female |
| Standards | CSA Listed; UL E79133 |
| Max. Temp. | 105 deg C |
| Max. Voltage | 600 V |
| Seam | Closed |
| Insulation Dia | 6.60mm max. |
| Material - Plating Termination | Tin |
| Orientation | Straight |
| Temperature Range - Operating | -65° to +105°C |
| Tab Width | 4.75 mm |
| Wire Size (AWG) | 14, 16 |
| CSA | LR18689 |
| Flammability | 94V-0 |
| Product Name | InsulKrimp |
| Series | 19003 |
| Lock to Mating Part | None |
| UL | E79133 |
| Type | Quick Disconnect |
| Gender | Female |
| Material - Resin | Nylon |
| Termination Interface Style | Compression, Crimp |
| Polarized to Mating Part | No |
| Plating min - Mating | 4.064 um |
| Insulated | Fully |
| Material - Plating Mating | Tin |
| Tab Thickness | 0.51 mm |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
